Garmin Forerunner 405 Button Replacement

Geschrieben von: Kyle Kiwczak
  • Kommentare: 2
Garmin Forerunner 405 Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 8 Minuten

Einleitung

This guide will walk you through the process of replacing a button on the Forerunner 405.

  1. kpWikIyJH43WEeLL

    • Unscrew the four 6.35 mm Torx T5 screws securing the backing of the watch.

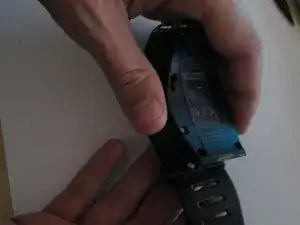

  2. 4wDayxyjZTvFiZeP

    • Pull the backing off the watch.

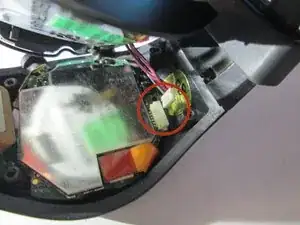

  3. nqFwqJjhG2GcLtEH

    • Pull the battery wires out from the motherboard slowly.

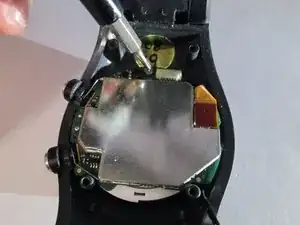

  4. N3fOFl5RvvScSasL

    • Unscrew one 4 mm philips screw that attaches the motherboard using a PH000 screwdriver.

    • Lift the motherboard out of the watch.

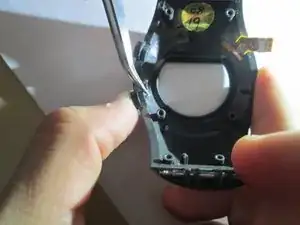

  5. iEIfCRxjxvV5b2ff
    iEIfCRxjxvV5b2ff

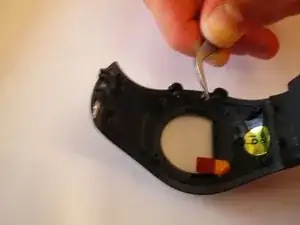

    6OQwAYwjMriuJALc

    • Push button in and pinch silver clip with tweezers.

    • Pull silver clip off the pin it is on.

    • Pull out button and replace.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kyle Kiwczak

Mitglied seit: 11/09/14

328 Reputation

2 Kommentare

Where to find repair button for FR60? Can it be 3d printed? Garmin asks too much out-of-warranty

vasiljevicic -

I took mine apart to find that the jammed button was actually bent. Using two pairs of needle-nose pliers, I was able to straighten it and re-use it. The watch works great now.

keithnbrauneckermil -
