Garmin GPSmap 60CSx Keypad Buttons Replacement

Geschrieben von: Thomas Humphrey

Kommentare: 1

Garmin GPSmap 60CSx Keypad Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten

Einleitung

If the buttons are unresponsive or sticking, the keypad may be compromised and need to be replaced. This is a guide to replace the keypad buttons of the Garmin GPSmap 60CSx.

Werkzeuge

Schritt 1

Lift and twist the battery cover release 90 degrees counterclockwise on the back of the device.

Schritt 2

Lift battery release up to remove battery cover.

Schritt 4

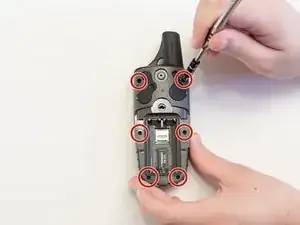

Remove the six 10 mm screws on the back of the device with a Phillips #0 screwdriver.

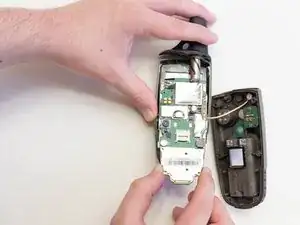

Flip the back panel over to view the green electronics board (the PCB) and the PCB covering.

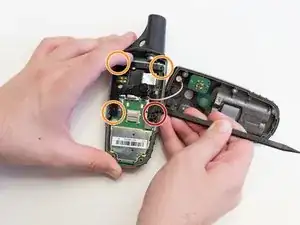

Remove the black, yellow, blue, and red wires connected to the PCB with light force.

Remove the black, yellow, blue, and red wires connected to the PCB with light force=>It is necessary to be very carrefull with this ! In the picture, the red wire is broken, in the other pictures, all the wires are broken.

Patrick D - 17/10/18

Schritt 5

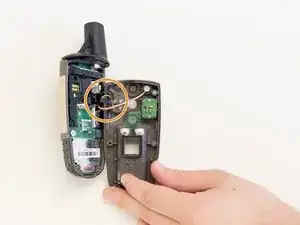

Place the spudger in the bottom right corner of the black PCB cover and pry the corner out.
The previous step will need to be done to the other three corners.
It is best to do the two bottom corners first.
Pull the black PCB board out of the GPSMap 60 CSx.

Schritt 6

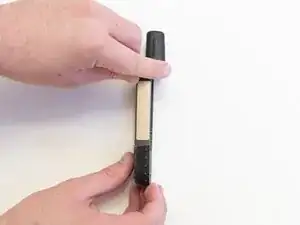

Carefully use a spudger to lift the PCB a few centimeters.

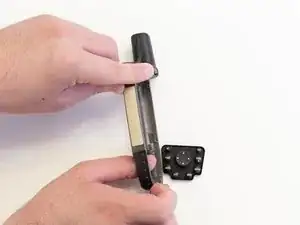

Pull the PCB out towards the bottom of the GPSMap 60CSx.
This will pull out all the main components including the antenna and the screen.
