Garmin GPSmap 60CSx Screen Replacement

Geschrieben von: Thomas Humphrey
  • Kommentare: 2
Garmin GPSmap 60CSx Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten

Einleitung

If the screen remains blank while the device is turned on, is cracked and unable to be used, or remains unresponsive, the screen may be broken and need to be replaced. The following are steps on how to replace the screen of the Garmin GPSmap 60CSx.

  1. XFaCOrQCMBxSdrsG

    • Lift and twist the battery cover release 90 degrees counterclockwise on the back of the device.

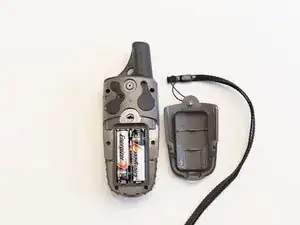

  2. PXRLDJa3UhF6aYie

    • Lift battery release up to remove battery cover.

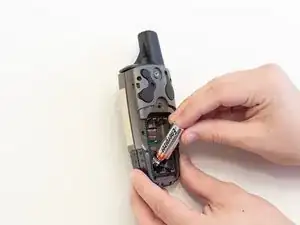

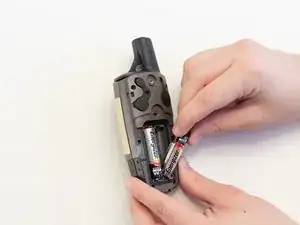

  3. V5NGKPiaFHAsBGOv
    V5NGKPiaFHAsBGOv
    sT2xwNMNQFma2Qhm

    • Pull AA batteries out.

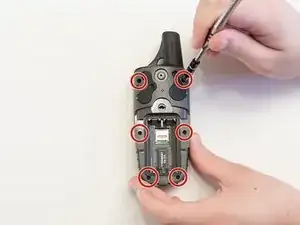

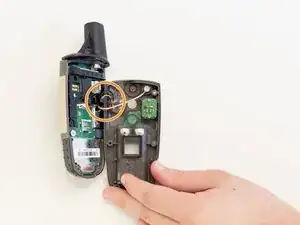

  4. BO5qpgCFkJT4CcMy
    BO5qpgCFkJT4CcMy
    6RfnockesoVDgMOF

    • Remove the six 10 mm screws on the back of the device with a Phillips #0 Screwdriver.

    • Flip the back panel over to view the green electronics board (the PCB) and the PCB cover.

    • Remove the black, yellow, blue, and red wires connected to the PCB with light force.

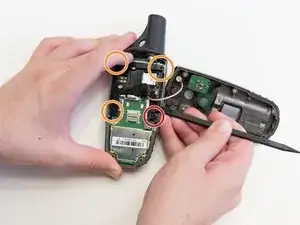

  5. saSHkOAnvCZSDhs4

    • Take the spudger and place it in the bottom right corner of the black PCB cover.

    • Use the spudger to pry the corner out. This will need to be done to all four corners of the PCB cover.

    • It is best to do remove the bottom corners first.

    • Pull the PCB cover out of the GPSMap 60CSx.

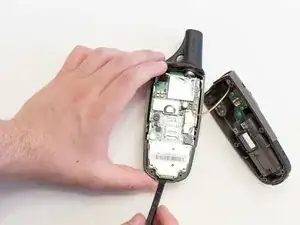

  6. PfLeU1xWRAMncPl5
    PfLeU1xWRAMncPl5
    OguCJZp4OJkF3kZY

    • Carefully use the spudger to lift the PCB a few centimeters.

    • Pull the PCB towards the bottom of the GPSMap 60CSx.

    • This will pull the other components out of the GPSMap 60CSx like the antenna and the screen.

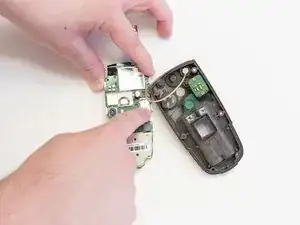

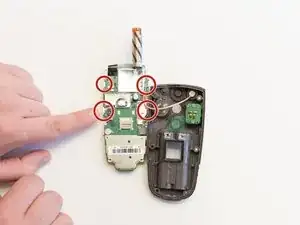

  7. S5STSOeKKJiXciH6
    S5STSOeKKJiXciH6
    UGRPf6PvKuqSFCSa
    xBIgHDWmyA1hXRyA

    • Apply light pressure to the four white tabs that are holding the screen in place.

    • The screen will now come off the PCB.

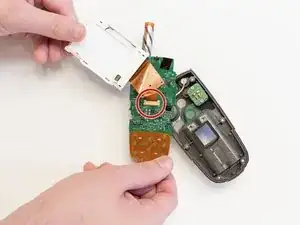

  8. qrJJAdRNZ1SSlXLP

    • Turn the PCB over so the screen connector is facing you.

    • Move the screen out of the way for access to the screen connector.

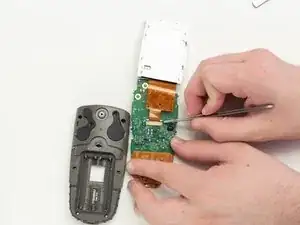

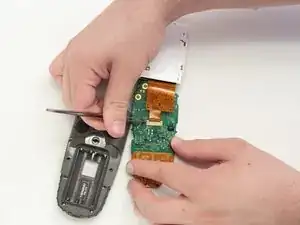

  9. tPQpJpScK6ZZ5i6v
    tPQpJpScK6ZZ5i6v
    sEpdRkpWZyoIF5eV
    h2EhmbvwlUGrsArS

    • Use tweezers to pull the two white pins on the connector forward.

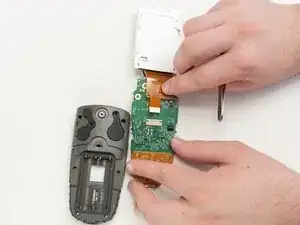

  10. DnG6imSsWhPKEewK

    • Remove the screen ribbon connector and screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
