Garmin Nüvi 205W LCD Display Replacement

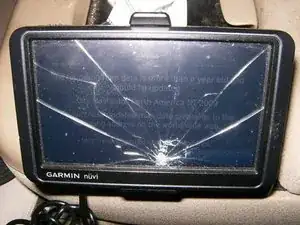

The cracked screen is clearly visible. LCD is still functioning, but obviously no touch function.

Remove the holder as well as the power cord from the back of the GPS unit.

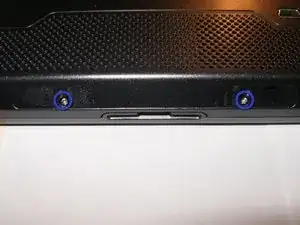

The Nüvi uses two screws that are hidden underneath the label on the bottom.

Remove the label, then remove the two Torx T5 screws

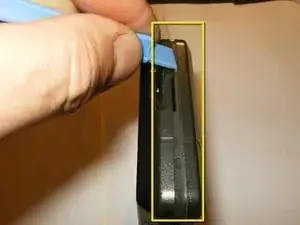

Use a plastic opening tool to start splitting the front and back case.

Work your way around the separation line, gently applying continous pressure to the back case.

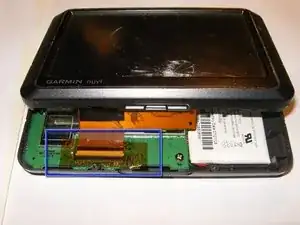

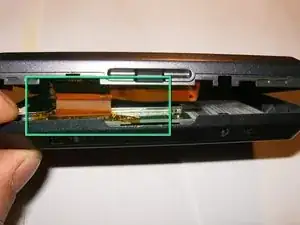

Once the front and back case are split, do not yet totally remove it. The LCD is still attached via a ribbon cable.

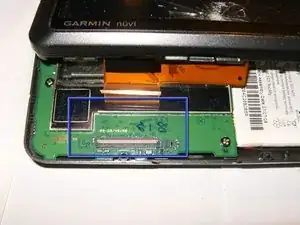

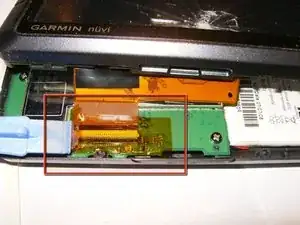

The ribbon cable and connector are covered with a strip of Kapton tape

Remove the tape. Use the plastic opening tool, or any other appropriate tool (i.e. guitar pick, fingernails etc), to remove the tape.

Once the tape is removed, flip the white clasp open, by moving it away from the cable end, disconnect the LCD.

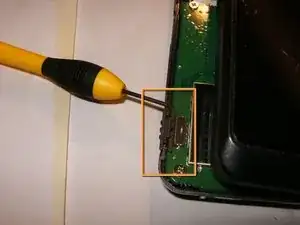

Remove the On/Off switch

Remove the complete front assembly.

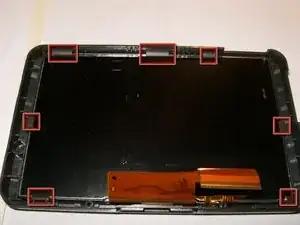

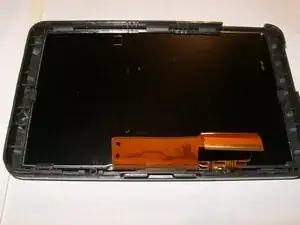

The LCD assembly is held in the front bezel by seven plastic tabs.

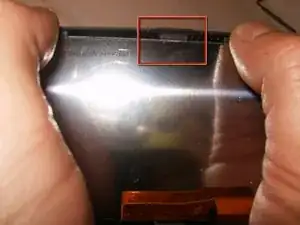

Move those tabs slightly back while applying pressure from the opposite side (front of the LCD)

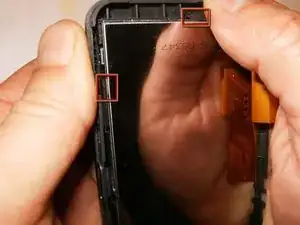

Continue to push the tabs on the bezel away from the LCD assembly, pushing the LCD away from the bezel

Ensure that the LCD assembly clears all the tabs.

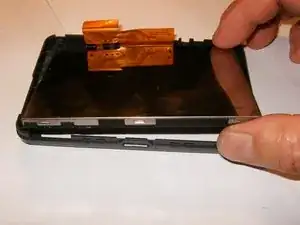

Remove the LCD from the front bezel

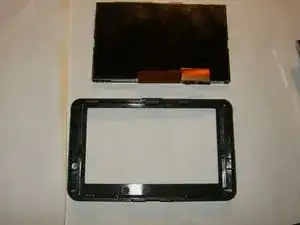

Totally separate the assembly from the bezel. Now it is time to replace it with a new assembly.
