Garmin Nuvi 1390LMT Battery Replacement

Geschrieben von: Trey Ulsh
  • Kommentare: 1
Garmin Nuvi 1390LMT Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 20 Minuten

Einleitung

This guide will show you how to disassemble the Garmin Nuvi 1390LMT GPS to replace the battery.

  1. uCtVXVEPlMZsRXGj

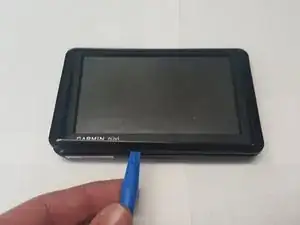

    • Snap the plastic cover off using a plastic opening tool.

  2. XiRDxEfeUyUp2jpI
    XiRDxEfeUyUp2jpI
    UbsmyJCnQIXbZBS2

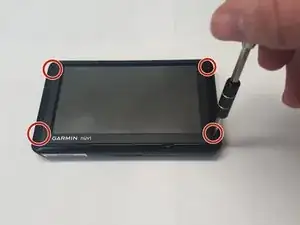

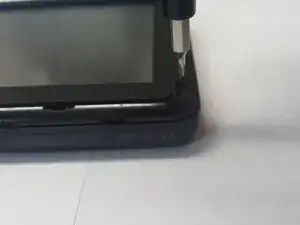

    • Remove the four black 11 mm T5 torx screws.

  3. uUhDULeRPUSKNXYd

    • Pop the screen cover off with a plastic opening tool.

  4. e341Vmx5daO5aeh3
    e341Vmx5daO5aeh3
    G56xt5qfMIKR5glC

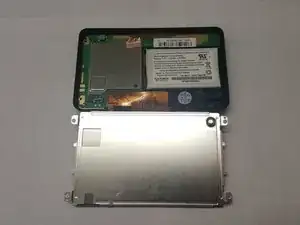

    • Flip the screen over out of the case.

    • Be sure not to twist or damage the wiring harness connecting the screen to the circuit board.

  5. JhnDdMb5ILRiCU13

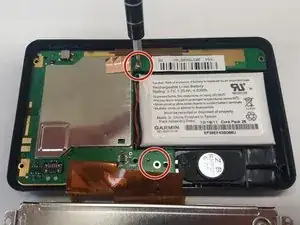

    • Remove the two silver 5 mm T5 torx screws connecting the circuit board to the plastic casing.

  6. DGKcDtPfqrUQCVeA
    DGKcDtPfqrUQCVeA
    DhL2GtUrQrpGEOYl

    • Flip the circuit board over onto the screen.

  7. rfEeTqXjjZ3Ho5Dg

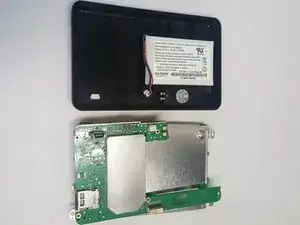

    • Disconnect the harness between the battery and the circuit board.

  8. ECeKXhQ1lVoJmfYO
    ECeKXhQ1lVoJmfYO
    ux4FVTrbKmZgcJOO

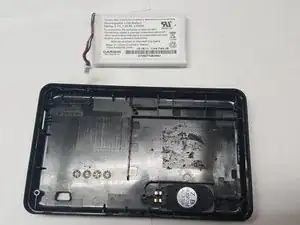

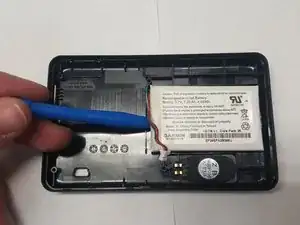

    • Peel the battery from the plastic back with a plastic opening tool.

    • It is connected with a glue so be careful.
