Garmin Nuvi 1390LMT Logic Board Replacement

Geschrieben von: Trey Ulsh
  • Kommentare: 1
Garmin Nuvi 1390LMT Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 35 Minuten

Einleitung

This guide will show you how to disassemble the Garmin Nuvi 1390LMT GPS to replace the logic board.

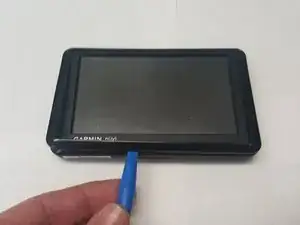

  1. LTaMOyje3gOP24PT

    • Snap the plastic cover off using a plastic opening tool.

  2. TJjeqqFSt3AslST1
    TJjeqqFSt3AslST1

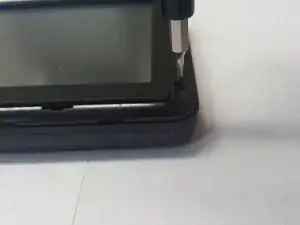

    WAVqDceDw2cykTeF

    • Remove the four black 11 mm T5 torx screws.

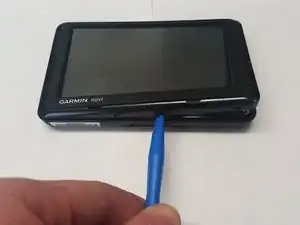

  3. pAV1ETN1tyCguljh

    • Pop the screen cover off with a plastic opening tool.

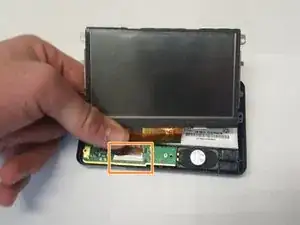

  4. vlvx56Oy5Ky1OU43

    • Gently pull the wire ribbon connecting the screen to the logic board from the plug.

    • Be careful when unplugging the wire ribbon. It is very fragile.

  5. M6cUqegc3hJwD6TW

    • Remove the two silver 5 mm T5 torx screws connecting the circuit board to the plastic casing.

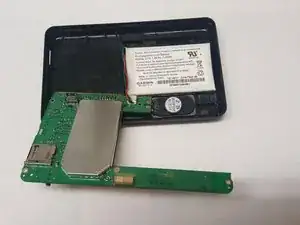

  6. RbMPjNFlXGwpSWRC

    • Flip the logic board over.

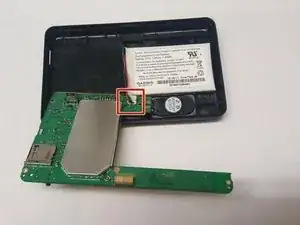

  7. X3N6IULK6FbKtwWh
    X3N6IULK6FbKtwWh

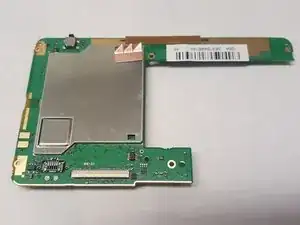

    Fi5K22KUpfSMgghB

    • Disconnect the harness between the battery and the logic board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
