Garmin Nuvi 1390LMT Touch Screen Replacement

Geschrieben von: Trey Ulsh
  • Kommentare: 0
Garmin Nuvi 1390LMT Touch Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 25 Minuten

Einleitung

This guide will show you how to disassemble the Garmin Nuvi 1390LMT GPS to replace the touch screen.

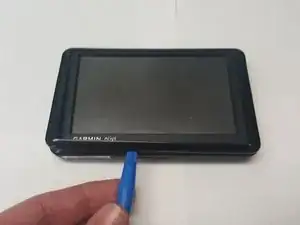

  1. PHnYIcPNUqyZWKcf

    • Snap the plastic cover off using a plastic opening tool.

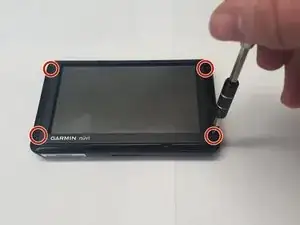

  2. bP4EyuCBlbwW4NOV
    bP4EyuCBlbwW4NOV

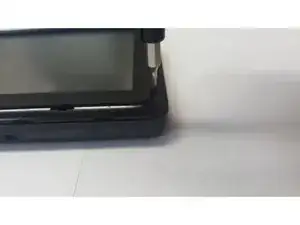

    bHcUZmwRQkpUiBQk

    • Remove the four black 11 mm T5 torx screws.

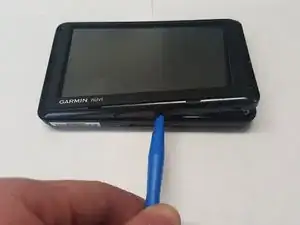

  3. AXVfatQ2AEDLPceI

    • Pop the screen cover off with a plastic opening tool.

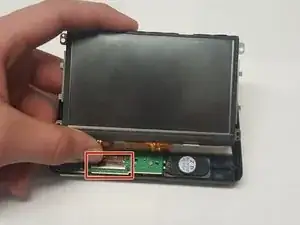

  4. No1UDDnjNVYXEVWu
    No1UDDnjNVYXEVWu
    IHEpPhDQmPF4ptxE

    • Gently pull the wire ribbon connecting the screen to the logic board from the plug.

    • Be careful when unplugging the wire ribbon. It is very fragile.

Abschluss

To reassemble your device, follow these instructions in reverse order.
