Garmin Nuvi 1490T Speaker Replacement

Geschrieben von: Ricardo Solis
  • Kommentare: 1
Garmin Nuvi 1490T Speaker Replacement

Schwierigkeitsgrad

Very easy

Schritte

8

Zeitaufwand

7 Minuten

Einleitung

Use this guide to replace your speaker for your Garmin Nuvi 1490T.

  1. MCkLEdeM24JNVyGr

    • Power off your GPS before moving on.

    • Locate the crevice that separates the frame from the body.

    Front panel is very fragile. Exercise extreme care.

    May be able to purchase part separately from Garmin should you have a mishap.

    K Alphonso -

  2. IJ5qnv2uXUVcDfbr

    • Carefully insert the plastic prying tool into the crevice to separate the frame from the body.

    • Applying excessive force can lead to a damaged or scratched display screen.

  3. 3ZTLIT3TE4TEtl11
    3ZTLIT3TE4TEtl11
    oNQkCMWRvjFqDJx3

    • Slide the plastic prying tool around the perimeter to completely remove the frame.

  4. V3wTWqIjGUQF4TEk
    V3wTWqIjGUQF4TEk
    pVmP1YDFZiqXaRJr
    P4t4CZvZCxMNYMvA

    • Remove the four 11.0 mm screws using the Torx T5 screwdriver.

  5. 6CF6PFUxgsK5bXJB
    6CF6PFUxgsK5bXJB
    pxZwwp1YchvyYOAo
    oyp5BPwNh3QGQTLg

    • Using the plastic prying tool, dislodge the frame from the body of the device.

    • Using your hands, completely disconnect the frame from the body.

    • Set the pieces of the frame aside.

  6. HWjWmiDZS1F6AaVL
    HWjWmiDZS1F6AaVL
    fwRmZJJVPJN4pLcI

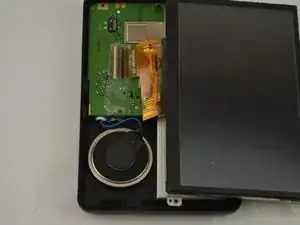

    • Carefully move the display out of the way of the speaker revealing the blue and black cord from the speaker.

  7. WBLd6slhtuDi4Jdo
    WBLd6slhtuDi4Jdo
    DNmUHJHQWjioYksT

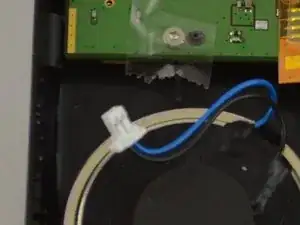

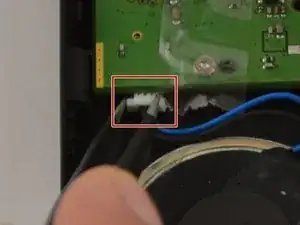

    • Using tweezers, gently clamp onto the white plastic end of the speaker connector.

    • Remove it by pulling slightly towards the speaker.

  8. NmSvSbTdaqEGDyOs
    NmSvSbTdaqEGDyOs
    gOoFotb1NnNaIMS2
    AMyGg3ZPkN2Rqj1j

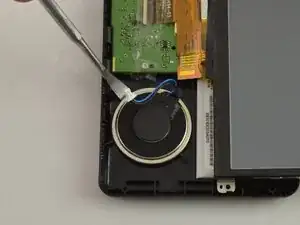

    • Wedge a nylon spudger into the crevice to begin to dislodge it from the body.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The metal spudger is great when you need serious prying power, but the regular black nylon spudger or a plastic opening tool should be used whenever possible.

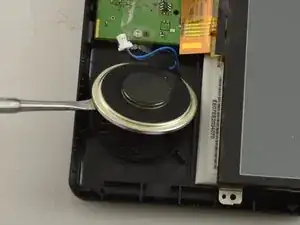

    • Slide the tool around the perimeter to fully dislodge the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
