Garmin Nuvi 200 Display Replacement

Geschrieben von: Nick
  • Kommentare: 0
Garmin Nuvi 200 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

Opening the Nuvi and replacing a broken/damaged display.

  1. Xtup5u5pLqrZMr5R
    Xtup5u5pLqrZMr5R
    ucUQVOHmSHyDwKPS

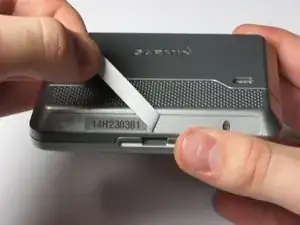

    • Peel off the sticker from the bottom of the device to reveal two screws.

  2. wbJIRZylTVPYSXri

    • Remove two T5 Torx screws.

  3. S3EF41EpceRGWouO
    S3EF41EpceRGWouO
    ZbBLlJwcORgXDKxS

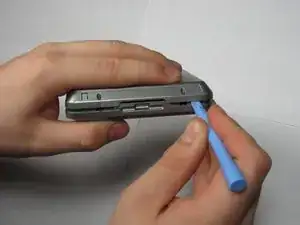

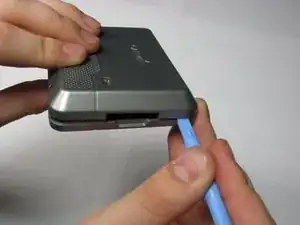

    • Insert a plastic opening tool in the gap between the front and rear casing.

    • Carefully work the tool around the gap, separating the two halves of the case.

    • Keep the power switch in place while removing the rear case.

  4. jk51YsDt15ZpVVM1

    • Apply pressure to the tabs holding the screen in place with the plastic opening tool

  5. ARVWBBXBx6nU2VvA
    ARVWBBXBx6nU2VvA
    SQoRGNIdkcURScqR

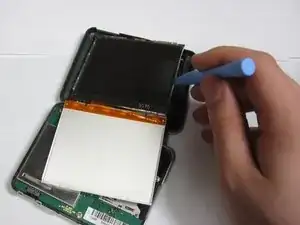

    • Apply pressure to the same tabs again to remove the front of the screen.

  6. nAEWgXCy2PUKVw2U
    nAEWgXCy2PUKVw2U
    v2YmwRRXklpHcX4s

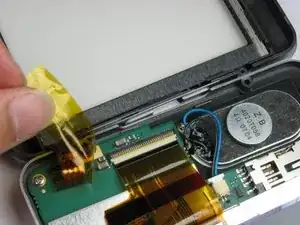

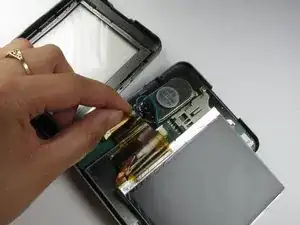

    • Peel away the material holding the ribbon cable in place.

    • Peeling the sticker halfway will allow you to access the ribbon cable. Removing it fully will allow you to detach the upper case from the lower case.

  7. ew3sK3kGAl5XTLVA
    ew3sK3kGAl5XTLVA
    ImUST2FWKFyFUUb3

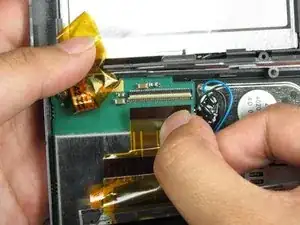

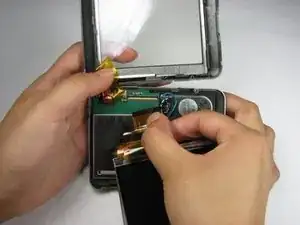

    • Disconnect the ribbon cable from the logic board.

    • Make sure to disconnect the cable from both ports.

  8. 1jCLWDHdXeoEyByn
    1jCLWDHdXeoEyByn
    uEMHgikXD3OGmbPF

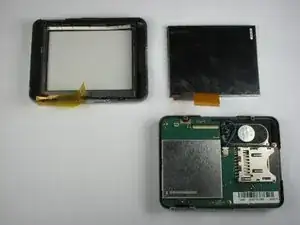

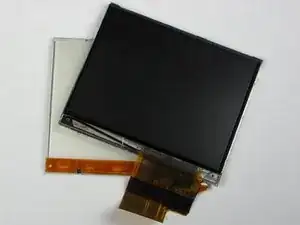

    • The display consists of two screens which are held together by the ribbon.

Abschluss

To reassemble your device, follow these instructions in reverse order.
