Garmin Nuvi 2455LMT Battery Replacement

Geschrieben von: Torrance Williams
  • Kommentare: 0
Garmin Nuvi 2455LMT Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

This battery is a simple part to replace and will only take about 2-3 minutes. This guide requires a metal spudger and the Torx 4 screwdriver.

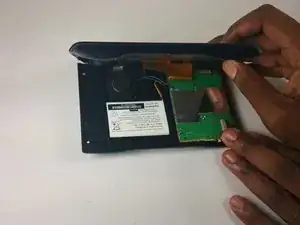

  1. MVApoGv2KAmkSdjR
    MVApoGv2KAmkSdjR
    3hiAXkXxf5DAaNBr

    • Remove the orange band from the motherboard to access screws.

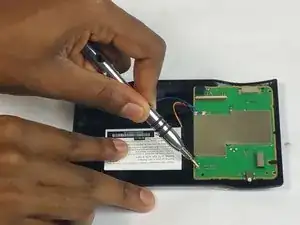

  2. TFACQJILfDIQgEHo
    TFACQJILfDIQgEHo
    yvWxB6jbxAMUcYJm

    • Unscrew the motherboard from the device

    • Lift the motherboard to reveal the cords underneath.

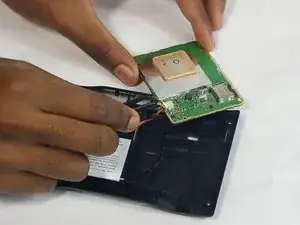

  3. b31D2dJL2SXFWVin

    • Find the cord that connects the motherboard to the battery

    • Disconnect this cord from the motherboard

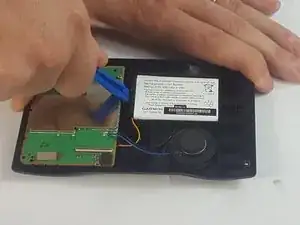

  4. 4R5VNSuJ6PMUROUT

    • Using the plastic opening tool, pry the battery from the base of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
