Garmin Nuvi 2455LMT Speaker Replacement

Geschrieben von: anthony della volpe
  • Kommentare: 0
Garmin Nuvi 2455LMT Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. KdmocS1BNY6le1jX

    • Remove the four 2.5mm screws from the back assembly with a Torx #04 Screwdriver. Holding the GPS with a free hand while unscrewing the small screws will help stabilize the device.

    • Holding the GPS with a free hand while unscrewing the small screws will help stabilize the device.

  2. F1Eptr2kgn6LsnLT
    F1Eptr2kgn6LsnLT
    oQLFS1IDrMuYLQO3

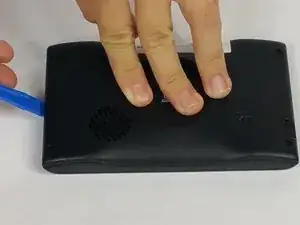

    • Use the plastic opening tool on all four sides of the device to open the Garmin Nuvi LMT2455 Back Panel.

  3. WIaTJrbHgsayoLbT
    WIaTJrbHgsayoLbT
    qUmkm3PqgBeKP1hf
    MUfQxhnSO5Z4PDrB

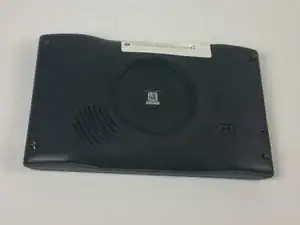

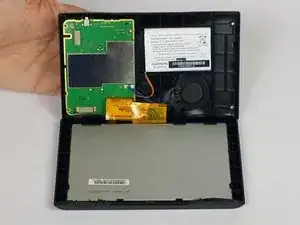

    • Open the device carefully being weary of the orange band that is going from the screen to the mother board.

  4. k3XJHTkVsXAUdluJ
    k3XJHTkVsXAUdluJ
    WUFdoxlWWXgh5Dru

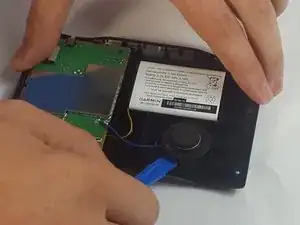

    • Using the plastic prying tool, carefully pry the speaker from the plastic backing.

    • Remove the speaker from the motherboard by gently pulling on the wire.

Abschluss

To reassemble your device, follow these instructions in reverse order.
