Garmin Nuvi 2557LMT Battery Replacement

Geschrieben von: Danis Terzi
  • Kommentare: 2
Garmin Nuvi 2557LMT Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

The tools needed are a T5 Torx screwdriver and a plastic opening tool. The battery is glued to the back of the device and connected to the motherboard with a wire.

  1. qF5jqgI2J5S4JITv

    • Using a T5 Torx screwdriver, remove four 6 mm screws from the four corners of the back of the device.

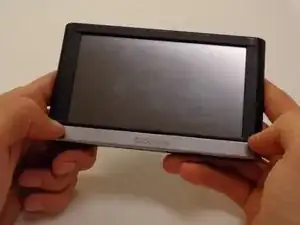

  2. mpsrNUb21T41xxGy

    • Grip the device with your hands. Using your thumbs pull the nameplate towards yourself and off the device.

  3. sglukEPdbLfLAdR4

    • There is a visible separation between the front and the back of the device.

    • Using a plastic opening tool, pry open the device along this separation.

    • Trying to open the device on the opposite side will rip the motherboard-display connector.

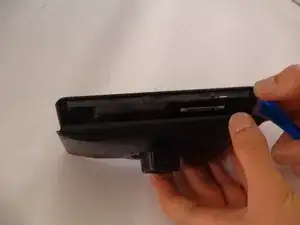

  4. HE1M4MPtnmDDBddG
    HE1M4MPtnmDDBddG

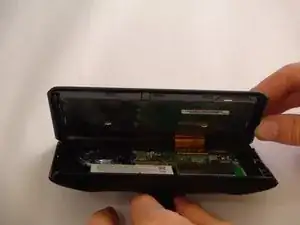

    PGhFVO4bBkNmYfPV

    • Carefully pull apart the device by opening it up on the opposite side of the nameplate.

  5. uNNDGVMdW2shNOqq

    • Using a plastic opening tool pry the battery away from the device.

    • The battery might be glued, so it might require a little bit of force to get it out.

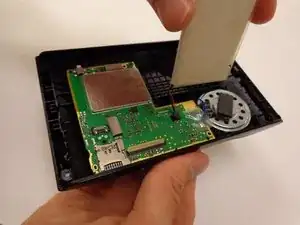

  6. CjxvoE6bNAKj3uol

    • Pull the battery-motherboard connector away from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Danis Terzi

Mitglied seit: 31/03/16

349 Reputation

2 Kommentare

On my Nuvi 2557, the silver name bezel is part of the front cover - it does not separate. I just split the case as shown.

The battery connector pulls out perpendicular to the pc board, and you re-insert it by aligning and pressing down against the board.

john horn -

Would this apply to the Nuvi 2555LMT?

Bill Hines -
