Garmin Nuvi 255W Power Button Replacement

Geschrieben von: Timothy
  • Kommentare: 4
Garmin Nuvi 255W Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

If your power button is defective, replace the old one with the new power button.

  1. NOFRZCY4HaDn1iyo

    • Remove the barcode sticker at the bottom of the device.

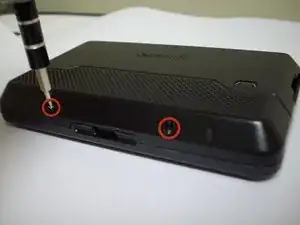

  2. DtdR4SeJZkvquui5

    • Remove two 8.4 mm T5 screws from the bottom of the device.

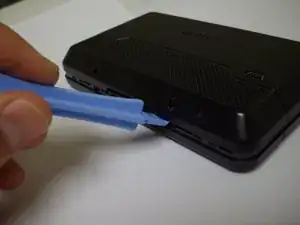

  3. G1iRb3GNFPKPTaXe
    G1iRb3GNFPKPTaXe
    GFE616mEevrkYLjV

    • Using a plastic opening tool, carefully pry open the device.

    • Open the device carefully, making sure not to damage the gold ribbon cable that connects the screen to the motherboard.

    turn the unit around

    Andrew Hayden -

    Since there is no replacement speaker whats the point of this process?

    greg -

    Very detailed set of instructions! Does anyone known the thread size of the screws in step 2? 8.4 mm T5 screws: is the length of the screw (8.4 mm) ,and the head specification (T5- size of screw driver). I need the actual thread specification. I lost one of the screws and the other one 's head is stripped. I need to replace both screws.

    Harold Schultz -

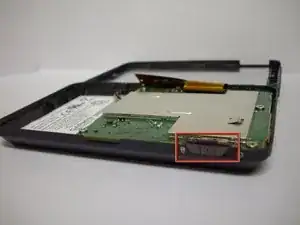

  4. b5TPtEO1ebpjPLwF
    b5TPtEO1ebpjPLwF
    yayblkxJbYISGvQW

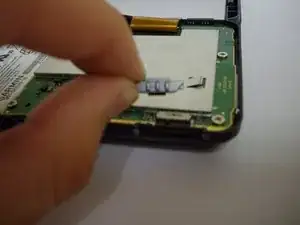

    • Remove the power button.

    Where can I buy the button

    milosvalek -

Abschluss

To reassemble your device, follow these instructions in reverse order.
