Garmin Nuvi 255W Touch screen Replacement

Geschrieben von: Ryan
  • Kommentare: 8
Garmin Nuvi 255W Touch screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

If your Touch Screen is cracked or scratched up, obtain a new Touch Screen and replace the old one with the new Touch Screen.

  1. NOFRZCY4HaDn1iyo

    • Remove the barcode sticker at the bottom of the device.

  2. DtdR4SeJZkvquui5

    • Remove two 8.4 mm T5 screws from the bottom of the device.

  3. G1iRb3GNFPKPTaXe
    G1iRb3GNFPKPTaXe
    GFE616mEevrkYLjV

    • Using a plastic opening tool, carefully pry open the device.

    • Open the device carefully, making sure not to damage the gold ribbon cable that connects the screen to the motherboard.

    turn the unit around

    Andrew Hayden -

    Since there is no replacement speaker whats the point of this process?

    greg -

    Very detailed set of instructions! Does anyone known the thread size of the screws in step 2? 8.4 mm T5 screws: is the length of the screw (8.4 mm) ,and the head specification (T5- size of screw driver). I need the actual thread specification. I lost one of the screws and the other one 's head is stripped. I need to replace both screws.

    Harold Schultz -

  4. b5TPtEO1ebpjPLwF
    b5TPtEO1ebpjPLwF
    yayblkxJbYISGvQW

    • Remove the power button.

    Where can I buy the button

    milosvalek -

  5. kPx2FfbOjYTOALs3

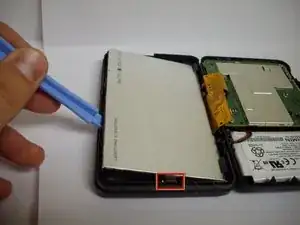

    • Remove touch screen by using the plastic opening tool as a wedge to pry the touch screen from the case.

    • It is easiest to do this by pulling on the side tab as you wedge the touch screen away from the case.

  6. RBOuGLXjYUwalgpu

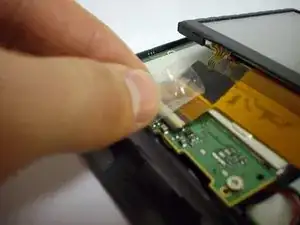

    • Lift the touch screen above the mother board so that its position is similar to what is shown.

    • Remove the tape connecting the gold ribbon cable circuit to the motherboard.

    • Peel the tape off slowly so there won't be any damage to the motherboard or gold ribbon cable.

  7. NG4wuMAoADwQIEHF
    NG4wuMAoADwQIEHF
    yYPq5aajFfgpeZYh

    • Lift up the tab connecting the gold ribbon circuit to the motherboard, using a plastic opening tool if necessary.

    • Gently remove the gold ribbon cable.

    • To insert a new screen in, attach the gold ribbon circuit to the motherboard by sliding it in place and pressing down on the tab. This may take a few attempts before it is connected successfully.

    The gold ribbon cable must be fully inserted under the flap. If there is no resitance in closing the flap, then it is not inserted all the way. It is difficult and takes patience with a steady hand. The tiny pins on the underside beneath the flap must penetrate the ribbon cable. A good magnifying glass is helpful.

    bluffviewmanor -

Abschluss

To reassemble your device, follow these instructions in reverse order.
