Garmin Nuvi 2595LMT Back Cover Replacement

Geschrieben von: Taylor DeWitt

Kommentare: 4

Garmin Nuvi 2595LMT Back Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

Werkzeuge

Pro Tech Toolkit

Schritt 1

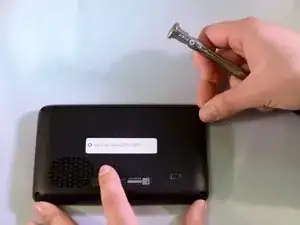

Place the device on the workspace so the screen is facing downward.

Schritt 2

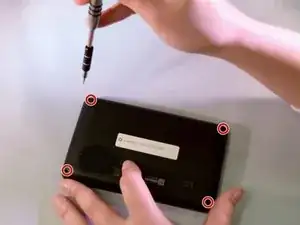

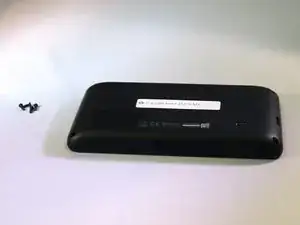

Using the t5 screwdriver from the iFixit Pro Tool Kit, remove all four 5.6mm screws placing them safely on the table.

Schritt 3

Grab a spudger from tool kit.

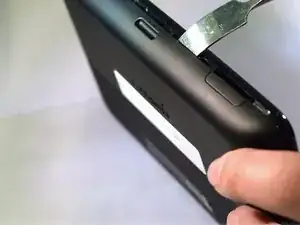

Pry open sides of Nuvi gently with spudger (do not rip apart).

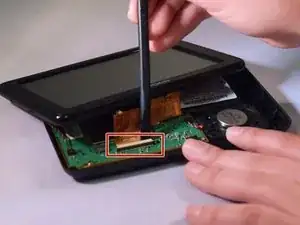

Use plastic opening tool to pry ribbon slowly from white plastic bar.

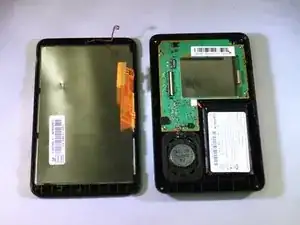

Separate the two pieces and place them on the table

The ribbon connector is held in place by a white plastic bar that snaps in place. It will pop up when lightly pried from the ribbon side as shown in the photo (the pivot action is on the connector side). Putting it back together is tricky. The ribbon cable has to lie flat in the connector as far back as possible; once this is true then snap the lever flat against the cable and lock it in place. You might feel a very subtle snap sensation.

dec59us - 01/03/21

I simply can't make this work.

daBee -

I replaced the battery in my Garmin 2595 and I couldn't get the screen to light up. I called Garmin for assistance and was told that my Garmin's battery could not be replaced and because I broke the seal in the back there was nothing that could be done to correct my problem. Meaning when this Garmin's battery goes bad, you must throw the unit away!!! I tried to explain there are all kinds of videos showing how to replace the battery, but I was told, none of them were from Garmin so there was nothing they could do for me!!!

Raymond S Yankura -

Yeah, that ribbon clip is impossible to get back into that slot and locked. I found a proper battery, but the unit is now broken because it won't seat at all.

daBee -
