Garmin Nuvi 2597LMT LCD Replacement

Geschrieben von: Patrick McNett
  • Kommentare: 3
Garmin Nuvi 2597LMT LCD Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will walk you through the process of replacing a faulty or broken LCD screen in your Garmin Nuvi 2597LMT. You may need this guide to replace the LCD if it is cracked, not showing anything at all, not responding to touch, or pixelated. Make sure you are very careful when working with your device; you don't want to break any of the fragile components inside or rip the ribbon cable connecting the two halves.

  1. 6NES2AxIgJY4XAXg
    6NES2AxIgJY4XAXg
    qRYmoiZ4klm1Eneh

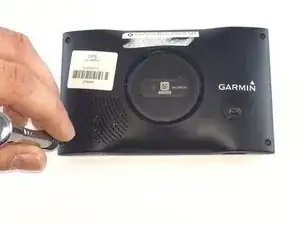

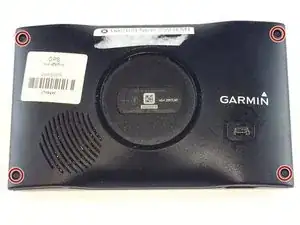

    • Turn your device over so the back is revealed and you can see the screws in the four corners.

    • Remove the four 3mm width by 6mm length T5 Torx screws using your screwdriver.

  2. IMelhu5u5EicAEjf
    IMelhu5u5EicAEjf
    VI3NdY3VPMkLjndZ

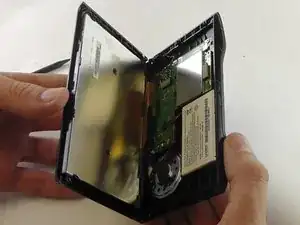

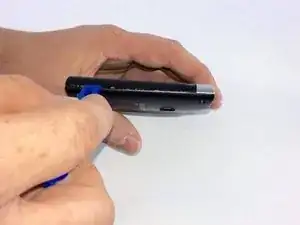

    • Use the plastic opening tool to pry open the device at the seam where the two halves meet, prying all along all sides if need be.

    • Do it slowly so you don't accidently rip the ribbon cable that connects the digitizer to the motherboard, as well as don't completely separate the halves as this can tear the ribbon cable as well.

  3. sIuuFHTNDSPLfvSw
    sIuuFHTNDSPLfvSw
    NBwhlor3JDCpCGUb
    tKUNPIIgpQPLToWN

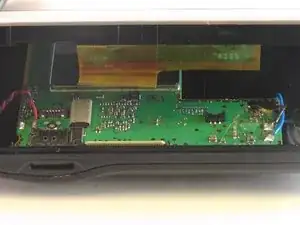

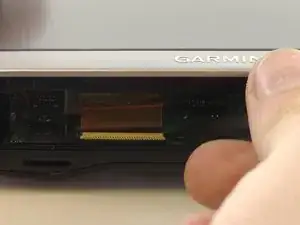

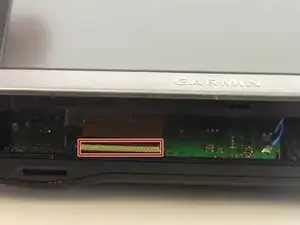

    • Use your tweezers to flip back the tab of the ZIF (Zero Insertion Force) Connector, that is used to keep the ribbon cable in place.

    • This releases the ribbon cable separating the two halves of the device.

    What happens if the ZIF comes off?

    Raymond Melaney -

  4. NHUFNYCswJscHUwB
    NHUFNYCswJscHUwB
    NpPXtQE5UcimwXIB

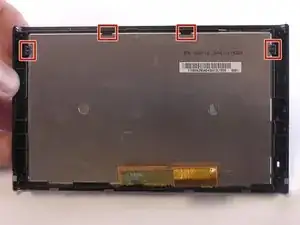

    • Use your hands to pull back the clips that hold the LCD in place.

    • Once you have removed the LCD you can safely set it aside.

    I got a new LCD from eBay for $15.05 including shipping from China. I followed these directions, and it works fine.

    wayneitano -

Abschluss

To reassemble your device, follow these instructions in reverse order.
