Garmin Nuvi 2597LMT Speaker Replacement

Geschrieben von: Patrick McNett
  • Kommentare: 5
Garmin Nuvi 2597LMT Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide will walk you through the process of replacing a faulty or broken speaker in your Garmin Nuvi 2597LMT. You may need this guide to replace the speaker if the speaker is muffled, fuzzy, or scratchy sounding, or if the speaker just doesn't work at all. Make sure you are very careful when working with your device; you don't want to break any of the fragile components inside or rip the ribbon cable connecting the two halves.

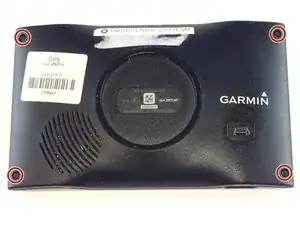

  1. S5YMBYPALgPrDcid
    S5YMBYPALgPrDcid
    ZD2UZLEmeNyjGGVK

    • Turn your device over so the back is revealed and you can see the screws in the four corners.

    • Remove the four 3mm width by 6mm length T5 Torx screws using your screwdriver.

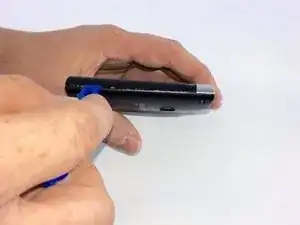

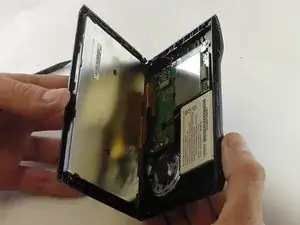

  2. LoNwZY21BeEMBXKY
    LoNwZY21BeEMBXKY
    IASIUf12oclxRsbq
    RKeD2prXpYQKkDPS

    • Use the plastic opening tool to pry open the device at the seam where the two halves meet, prying all along all sides if need be.

    • Do it slowly so you don't accidently rip the ribbon cable that connects the digitizer to the motherboard, as well as don't completely separate the halves as this can tear the ribbon cable.

    • Open your device from the top, so that you don't disconnect the ribbon cable.

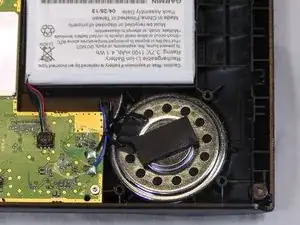

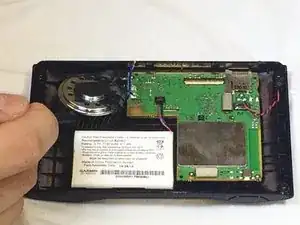

  3. NMnkMXFm2lfvUHIq
    NMnkMXFm2lfvUHIq
    fONVNpwc1sKamPJo

    • Use your thin spudger to gently lift the speaker off of the sticky pad and away from the casing.

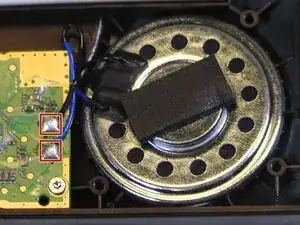

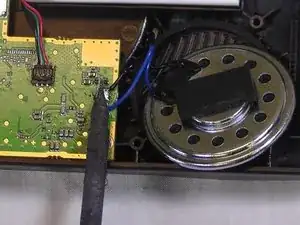

  4. tNCvFVgRHNYimWvG
    tNCvFVgRHNYimWvG
    ywsOBfZSjkCEDGRB

    • Use your soldering iron to disconnect the wires from the motherboard. Disconnect the ground wire (the black one) and the positive wire (the blue one).

    • The soldering iron is very hot and do not touch the wires to anything as it may stick to it when it cools.

    • After you have finished this step and the wire ends have cooled, you can safely set the removed speaker aside.

    Toward the beginning, just above the Introduction section, it says "Parts - no parts required." That doesn't make any sense. Isn't the whole point of the procedure to replace the defective speaker? You would have to buy a new replacement speaker. No idea where you would get one except from Garmin, and I bet the cost is unjustifiable.

    Artie Abrams -

Abschluss

To reassemble your device, follow these instructions in reverse order.
