Garmin Nuvi 265 WT GPS Replacement

Geschrieben von: Nicholas Salinas
  • Kommentare: 0
Garmin Nuvi 265 WT GPS Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

  1. p1TcUSdKBE6BCxrB

    • Pull back the barcode located on the back of the device.

  2. MX1Rdy5tJEagXO1U

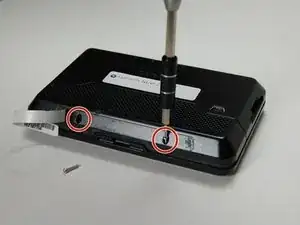

    • Unscrew the two screws located underneath the barcode.

  3. MSu1uuTBMkEptnqp

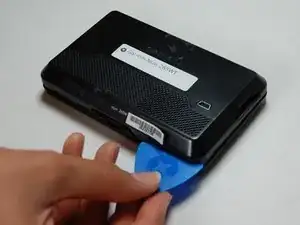

    • Use the pic to prop open the device on all four sides.

    • There are clips located on the inside of the device. Be careful when inserting the pic into the device.

  4. wdC1l11dBKJ55XDQ
    wdC1l11dBKJ55XDQ
    YPNDAQrOoWbitD33

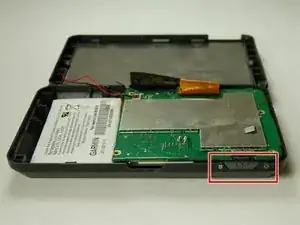

    • Be sure to remove the On and OFF switch.

    • Open the device gently to make sure not to lose the clip.

  5. aiHTLEVoBGG5ck6S
    aiHTLEVoBGG5ck6S
    lgxnGYyUPxJVCFwQ

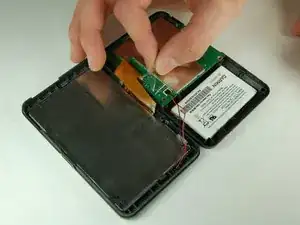

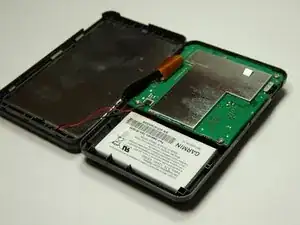

    • Remove the tape that is holding down the wires carefully/slowly.

  6. EaCiOl2WXmrWUNDV
    EaCiOl2WXmrWUNDV
    mBrSvFDQwfFMTU3N

    • Remove all four screws on the mother board with a T5 screw.

Abschluss

To reassemble your device, follow these instructions in reverse order.
