Garmin Nuvi 265WT Screen Replacement

Geschrieben von: Patricia Gonzalez
  • Kommentare: 0
Garmin Nuvi 265WT Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. qJeqHkE6JYq1DEih

    • Remove PN/Model sticker an the lower side of the device.

    • Use pentalobe screwdriver to remove the two screws underneath it.

    • Use the nylon spudger to remove the screen from the device.

    • The regular black nylon spudger should be used whenever possible, especially around glass displays and other sensitive components.

  2. RQOBrUFDtyLGISKY

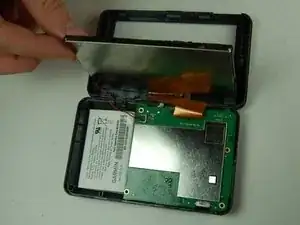

    • Lift up the screen gently and place it on the opposite side.

  3. A3FBeKWcFiaARbGx

    • Use a plastic opening tool to gently lift up the white rectangular snap clip that is attached to the screen.

  4. 6FXDoMu6HMXCIvxt

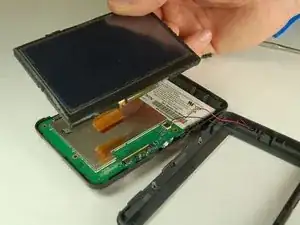

    • Lift up the screen and you're done.

Abschluss

To reassemble your device, follow these instructions in reverse order.
