Garmin Nuvi 2797LMT LCD Screen Replacement

Geschrieben von: baileykaytar

Kommentare: 4

Garmin Nuvi 2797LMT LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

This guide will show you, in easy-to-follow steps, how to replace the LCD Screen. It seems like a lot of work, but don't worry because it isn't.

Werkzeuge

Schritt 1

Before you begin make sure your device is turned off.

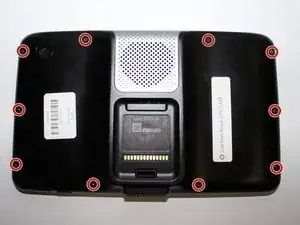

Using your T-6 Torx Screwdriver, unscrew the ten 2.38 mm torx T-6 screws from the back of your GPS.

Schritt 2

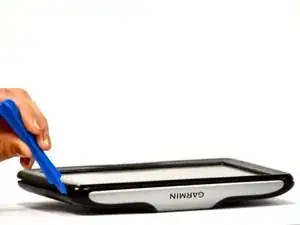

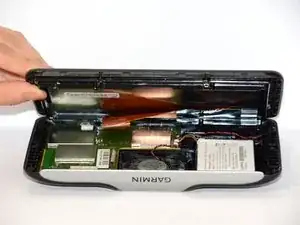

Using the biggest plastic opening tool, pry open the GPS from the sides. You should now be able to see everything inside the GPS.
Be careful when opening the GPS because of the ribbon attached to the screen. It can tear easily.

Schritt 3

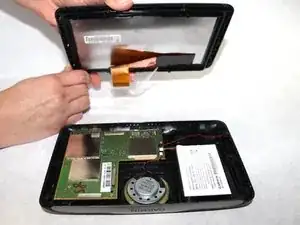

Locate the ribbon attached to the motherboard. Carefully detach the ribbon.

Schritt 4

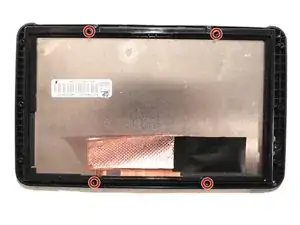

Using your T-4 Torx Screwdriver, unscrew the four 2.38 mm Torx T-4 screws from the back of your screen.

the glass is cracked not the screen cover. now what

Thomas L Camp -

Schritt 5

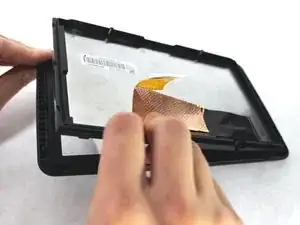

Now pulling up on one of the corners, bring the top half of the casing out of the bottom half.

Schritt 6

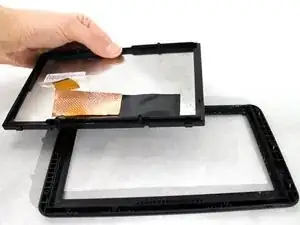

Now remove the front casing and back casing away from the screen. You will end up with three separate pieces.

i have a blank screen wondering if i didnt put the ribbon on correctly ive put it together a couple times same result hear a beep when first plugged in like normal but no screen any suggestions

Frank Purvis - 19/01/21

Abschluss

To reassemble your device, follow these instructions in reverse order.
