Garmin Nuvi 2797LMT Motherboard Replacement

Geschrieben von: Isaias Silva
  • Kommentare: 1
Garmin Nuvi 2797LMT Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Here are a few easy steps on how to correctly remove the motherboard so a new one can be installed.

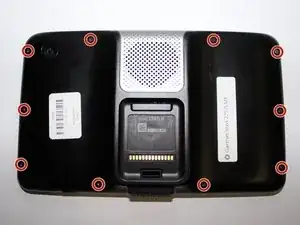

  1. UhsYDObrufvsFTBT

    • Before you begin make sure to turn off your GPS.

    • Using your T-6 Torx Screwdriver, unscrew the ten 2.38 mm torx T-6 screws from the back of your GPS.

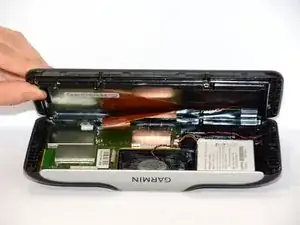

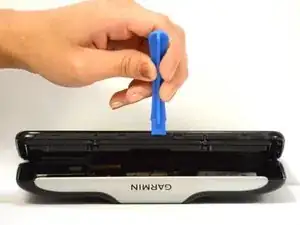

  2. 3V1jRNFvgr2mHwYX
    3V1jRNFvgr2mHwYX
    HEF3DQnXUta4Lewa
    ny46uWNDYgdUZVtC

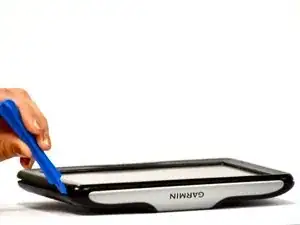

    • Using the biggest plastic opening tool, pry open the GPS from the sides. You should now be able to see everything inside the GPS.

    • Be careful when opening the GPS because of the ribbon attached to the screen. It can tear easily.

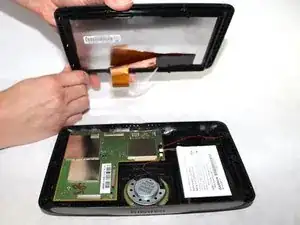

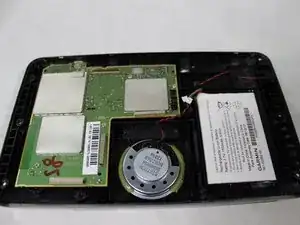

  3. A5P2XOcvSDhJ2qKU
    A5P2XOcvSDhJ2qKU
    XsBrEK4lrqe5wITf
    cG3oytCcJHfWOG1V

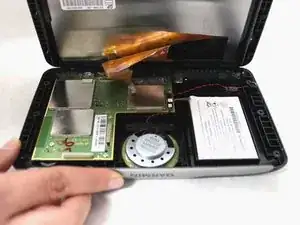

    • With the device opened, carefully remove the ribbon from the motherboard.

    • Unplug the three wire connectors from the motherboard.

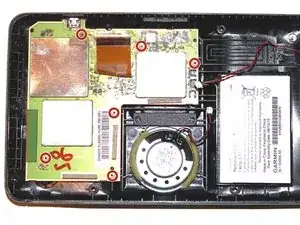

  4. NcuhBMvUW6Cecafq

    • Using your T-4 Torx Screwdriver, unscrew six 1.58 mm T-4 Torx screws from the motherboard.

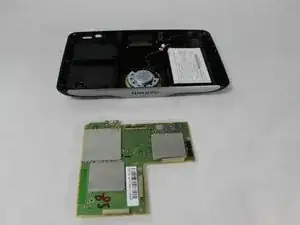

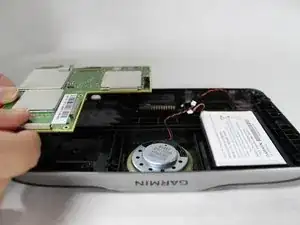

  5. AcFZQKbxsacKDNi6
    AcFZQKbxsacKDNi6
    MgIRCCEhLMKOjBv4

    • Now remove the motherboard out of the device. You will have two separate pieces.

Abschluss

To reassemble your device, follow these instructions in reverse order.
