Garmin Nuvi 42LM Back Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

This teardown is a prerequisite to all of the replacement guides for the Garmin Nuvi 42LM. This is because the battery needs to always be removed before working further on the device.

  1. CiXOkOcyyQGiWpgU
    CiXOkOcyyQGiWpgU
    FRijYC1NK6blMZau
    lW3RKgSWMJpp512n

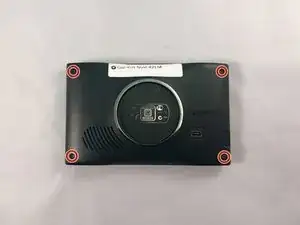

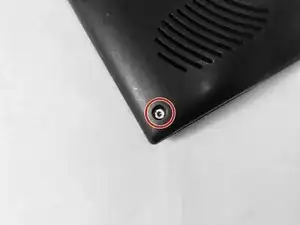

    • Remove the four screws on the back of the GPS using the T5 Torx screwdriver.

  2. mfumQvDivGCOFFo4
    mfumQvDivGCOFFo4
    UXBDEjKWa3xA4WEL
    WTWGnNDZWpi4CJDp

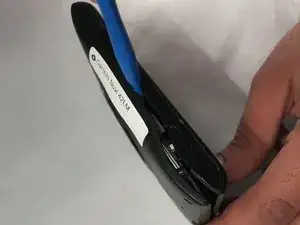

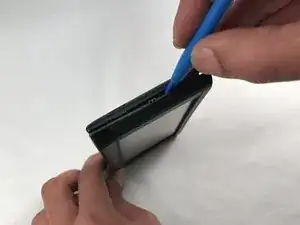

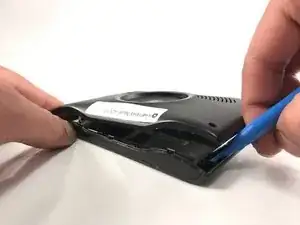

    • Pry the GPS open using a plastic opening tool.

    • When prying open the device, use caution to avoid damaging the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
