Garmin Nuvi 50LM Battery Replacement

Geschrieben von: Maurice Thomas
  • Kommentare: 5
Garmin Nuvi 50LM Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

Before replacing the battery, visit the device's troubleshooting page to determine whether you need to replace the battery. Follow the steps in this guide if you need to replace the battery.

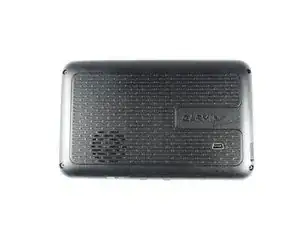

  1. 5fZUEveIRY1WSSKY

    • Place the GPS face down on a flat surface.

    • Make sure the side containing the speaker and charging port is facing up.

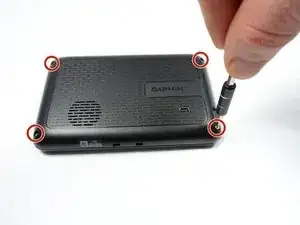

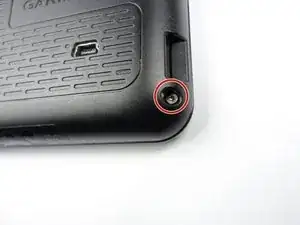

  2. EBPtqnLsaHUEdhpv
    EBPtqnLsaHUEdhpv

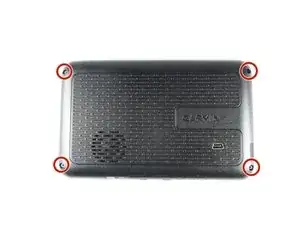

    u1LBheupChsLpHGY
    ZemSgGr4lKx1SQfm

    • Remove the four 9 mm screws on the back of the GPS with the T4 Torx screwdriver.

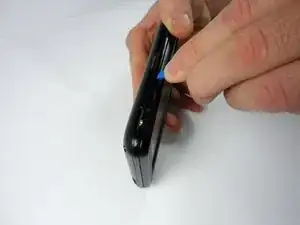

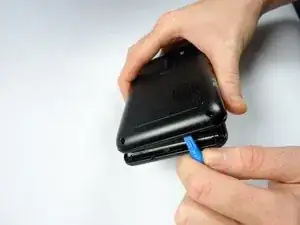

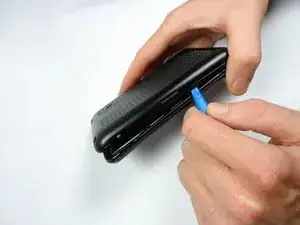

  3. gIimsDVwTA5oSklB
    gIimsDVwTA5oSklB
    m6QiOAXlGZQZobK3
    SbfadKnQ5tFcYqVp

    • Pry the GPS open using a plastic opening tool.

    • Avoid damaging the motherboard while opening the device.

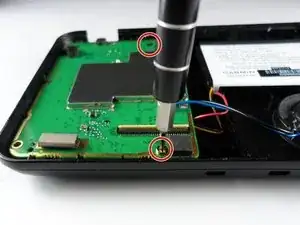

  4. VwRw2gARL1OcnAc2
    VwRw2gARL1OcnAc2
    OZNaeh6BcSVDjZKG
    bt4RMDdKpBLeaLpG

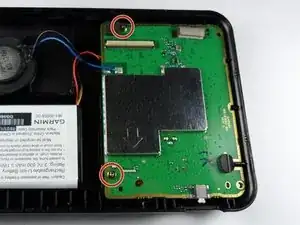

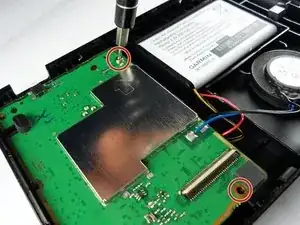

    • After the GPS is open, remove the two 9 mm screws holding the motherboard in place.

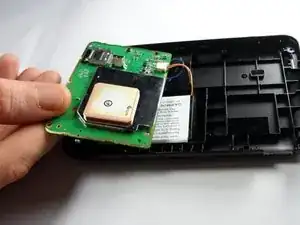

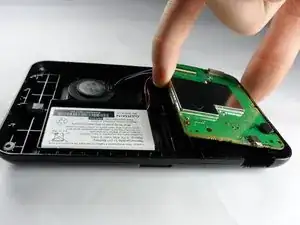

  5. hOjPfgTypAmOmOKE
    hOjPfgTypAmOmOKE
    psOuq3EGh5S1nCTR

    • Remove the motherboard from its designated location in the GPS.

    • Avoid damaging the blue and black speaker cables connected to the motherboard.

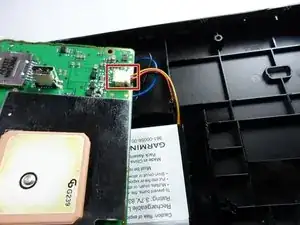

  6. HDqk2JeSji2DABGO
    HDqk2JeSji2DABGO

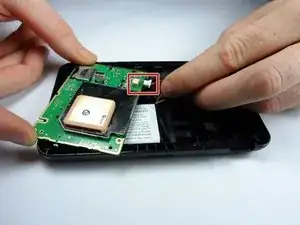

    LhjWCK4uRCBsZEno

    • Unplug the red and yellow cables from the motherboard to remove the battery.

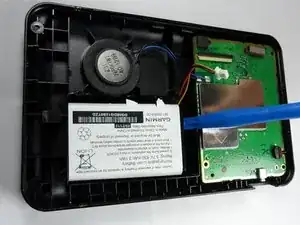

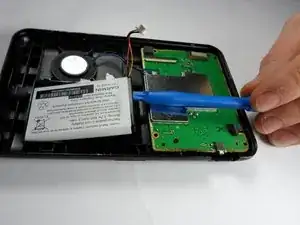

  7. EYQJIFfbHD6QHbpS
    EYQJIFfbHD6QHbpS
    O5tgO5MJo1iZyerX

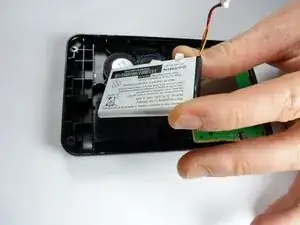

    MaQPGO2Su2lIeVlZ

    • Carefully pry out the battery using a blue plastic opening tool.

    • You may need to apply a considerate amount of force to remove the battery from the GPS because an adhesive secures the battery to the rear case.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Maurice Thomas

Mitglied seit: 13/10/15

661 Reputation

5 Kommentare

The process really is as essy as it looks. One thing though...

It seemed as though something would break before the battery would release. Not to worry; hold the case securely and the battery will eventually pop loose.

Stephen Fishman -

Great instructions, thanks. What helped me get the battery loose was to hit the outside of the case where the battery was with a hair dryer on high heat for about 4 minutes, then use a small flat-blade screwdriver under the battery corner, next to where the speaker is housed. It’s tempting to insert the pry tool between the battery and the thin “walls” that surround it, but the walls bent with slight pressure, so don’t do it!

Rich -

Just make sure you have the right tools . T4 comes in a Kit with several other sizes at Lowe’s . $5.00

lizborel -

did not have the blue plastic tool to pry open with but I did use a real small flat head screw driver. Worked fine

lizborel -

thanks Maurice, very helpful.

The hardest part was removing the cover. I didn’t have the plastic tool but managed, eventually.

Also the battery was a challenge, as previously noted in prior comment.

It is installed with powerful twin stick tape, so was able to pry it out along the perimeter, to loosen it up.

Greg Landis -
