Garmin Nuvi 50LM Charging Port Replacement

Geschrieben von: Maurice Thomas
  • Kommentare: 4
Garmin Nuvi 50LM Charging Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

20 - 25 Minuten

Einleitung

The motherboard is the lowest replaceable unit, so users cannot simply replace the charging port. Garmin permanently attached the charging port to the motherboard. If a user needs to replace the charging port, the user must replace the motherboard.

  1. soFOJRZU6YawsK3c

    • Place the device on a flat surface with the LCD touchscreen face down.

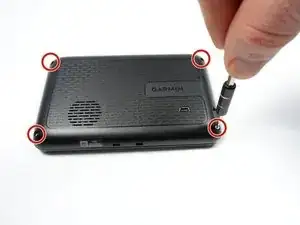

  2. Qm2BRDwQZSDxD2VA
    Qm2BRDwQZSDxD2VA
    fr1m3ZEKE5GysSO3

    • Remove the four 9 mm screws on the back of the GPS with the Torx T-4 screwdriver set.

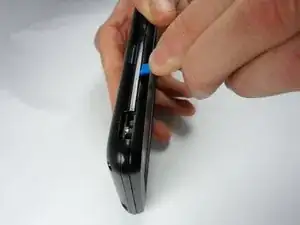

  3. 6Vg3CxIgWlSvOAR2
    6Vg3CxIgWlSvOAR2
    3doivHUNd1OjCbVw
    ExAuQlx1k3kcuYlm

    • Use the iFixit Plastic Opening Tool to separate the front cover and the rear cover on all four sides.

    • Be careful not to damage the orange ribbon cable while opening the device.

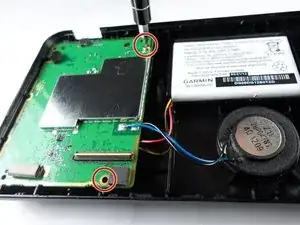

  4. GOjHcGISRBMsTjyF

    • Remove the two 0.5 cm screws using the T4 Torx screwdriver attaching the motherboard to rear cover of the GPS unit.

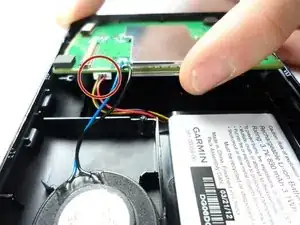

  5. bvCyBKPFrweoSLGT

    • Unplug the battery from the motherboard.

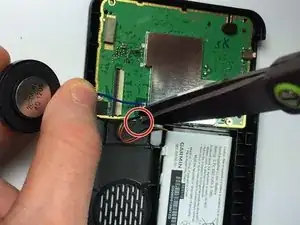

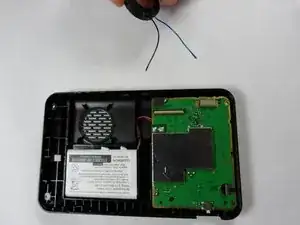

  6. XJJLPerBYWNPKF34
    XJJLPerBYWNPKF34
    DQg66jpReSJWQVXO
    E6qeSm6i4WKoAPIT

    • Use a pair of wire cutters to cut and separate the black speaker wire from the motherboard.

    • Use a pair of wire cutters to cut and separate the blue speaker wire from the motherboard.

    • To reattach the new speaker, you must use a soldering iron to solder the speaker cables to the motherboard.

  7. TgksBfEPkJx2XUlj

    • Use your fingers to remove the motherboard from the rear case of the system.

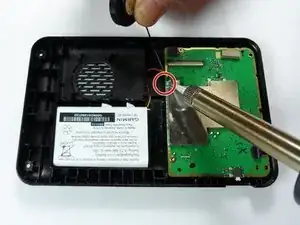

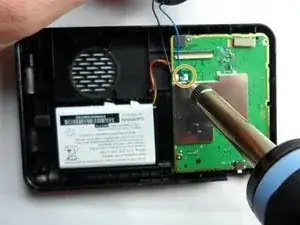

  8. TmFtgfnb1Cgfi4so
    TmFtgfnb1Cgfi4so
    JxDcNiA3ttZ24oxg

    • Place the replacement motherboard in the navigation system, and solder the speaker cables on the replacement motherboard.

    • Solder the black wire to the motherboard.

    • Solder the blue wire to the motherboard.

    • The soldering iron is extremely hot, so use prudence when working with the soldering iron.

    • The black speaker wire is the wire closest to the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order with the exception of cutting the blue and black speaker wires.

Tinte & Feder

Maurice Thomas

Mitglied seit: 13/10/15

661 Reputation

4 Kommentare

It's not a "Charging Port Replacement", it's a whole motherboard replacement, described in this guide. That's not what I'm looking for, and it's not what the guide's headline suggests.

ginxare -

Yes, you are right!

Tiago Martins -

I was hoping it will go into SMD soldering/desoldering (using hot air, etc). Where would you find a new “motherboard”, anyways? At that point it becomes difficult to see the value in “fixing” the device.

Dan -

BE VERY CAREFUL WHEN OPENING YOUR GARMIN - IT IS EXCEPTIONALLY EASY TO “TEAR” THE YELLOW FLEXIBLE CONNECTOR IF YOU ARE NOT AWARE OF THIS CONNECTOR -THEN THE GARMIN IS SCRAP - I find that the charge socket is the weakest point on these units & before I opened my last unit I threw a few out because the charge port had been damaged. The USB type C charge port can be replaced with a spare bought from an electronics part supplier, I found that I reinforced the port onto the board by soldering resistor leads to the USB socket casing & then soldered the other side onto the board to support also adding a some of glue from my glue gun. Seems that this modification increases the durability & lifespan of the unit. I also think that if the port gets damaged again I might try do a modification on the port & try solder the charger cable directly onto the board but be warned, because of the traffic antenna built into the cable I have no idea what effect this may have on the traffic function, possibly worth a try.

Alfred -
