Garmin Nuvi 50LM Speaker Replacement

Geschrieben von: Maurice Thomas
  • Kommentare: 0
Garmin Nuvi 50LM Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

20 - 25 Minuten

Einleitung

This guide instructs how to replace a faulty speaker.

  1. vGEiZloYN262IJTY

    • Place the LCD screen is face down on a flat surface.

    • Make sure the side containing the speaker and the charging port is facing up.

  2. TayIVygFltcuEFDi
    TayIVygFltcuEFDi
    uXQUghYfjbtbmVCT
    YKEFQEVoAh2wfNwx

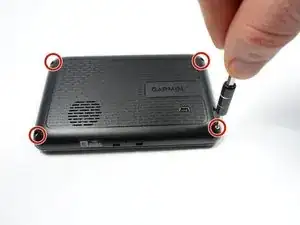

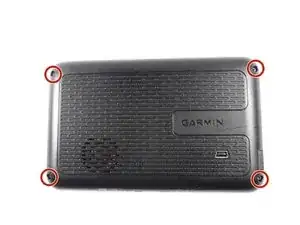

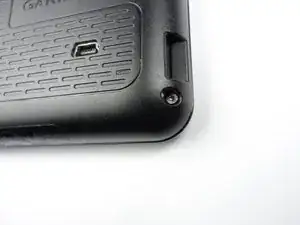

    • Remove the four 9 mm screws on the back of the GPS unit using the Torx T-4 screwdriver found in the iFixit Pro Tech Tool Kit.

  3. c15HTdWnncAkq53y
    c15HTdWnncAkq53y
    6NAnAo3tbDMGxUMy
    jYLE3WSpYQZGBkcI

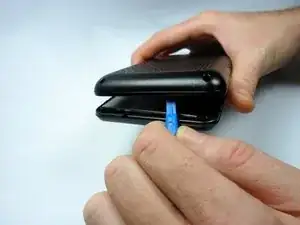

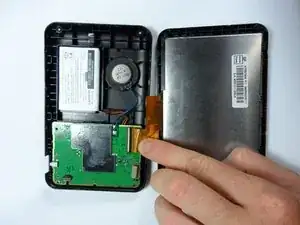

    • Gently pry open the device with the iFixit Plastic Opening Tool found in the iFixit Pro Tech Tool Kit.

    • Be careful not to damage the orange ribbon cable and the motherboard.

  4. 4FF4ELbxGMXYL6RD
    4FF4ELbxGMXYL6RD
    Mmfyjgh2PhcixU1K
    uIPqcJcmDuEjhGGg

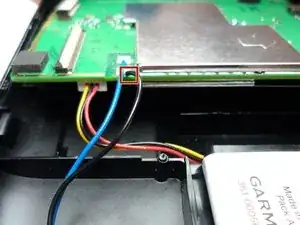

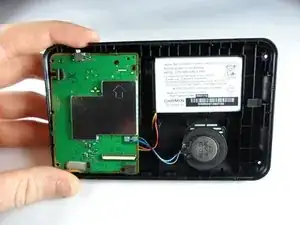

    • Once the GPS is open, identify the black and blue wires connecting the black speaker to the green motherboard.

    • The black wire is located closest to the speaker.

    • The blue wire is located farthest from the speaker.

  5. mvnBBV6WAVCIk2Ll
    mvnBBV6WAVCIk2Ll
    nYMMMHHpcRCxuBsT
    AVESiGJkPYVPfOEV

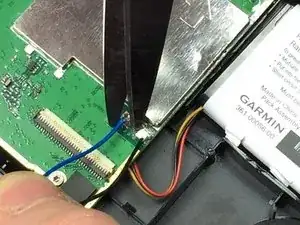

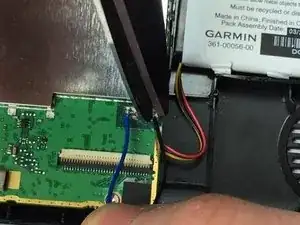

    • Cut both wires using a pair of wire cutters.

  6. aTyepgAwuJZgdJG2
    aTyepgAwuJZgdJG2
    EfxvwTKlFJmlfW5X

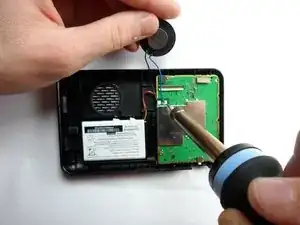

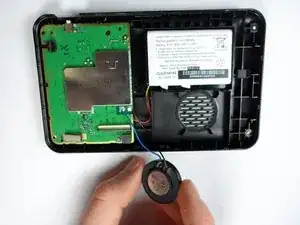

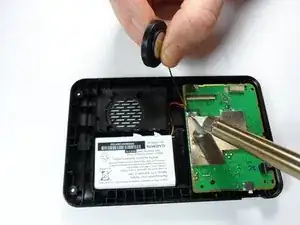

    • Solder the wires of the replacement speaker back onto the small silver squares located on the motherboard using the iFixit Soldering Station.

    • Be careful when using the soldering iron, the temperature can reach 600F.

    • Solder the black wire onto the motherboard on the port closest to the speaker and solder the blue wire onto the motherboard on the port farthest from the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
