Einleitung
This guide provides a quick and simple fix to one of the most common problems concerning this device. Before continuing it should be noted that this battery is a lithium ion battery. Any puncturing to the outer shell of the battery could risk a corrosive hazard as well as releasing flammable vapors.
Werkzeuge
-
-

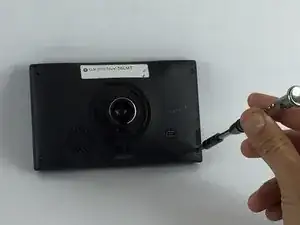

There are four 11.0 mm screws located at each corner on the back of the device.
-

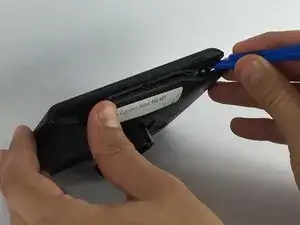

With the T5 torx screwdriver, remove these screws and set aside in a safe place.
-
-
-

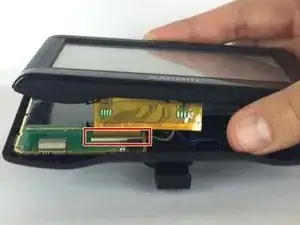

Observe the ribbon connecting the screen to the circuit board.
-

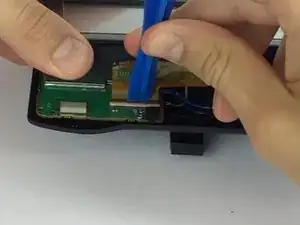

Detach the clip using the plastic opening tool and set aside the screen.
-
-
-

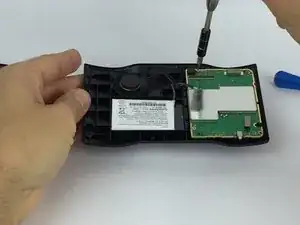

Using the T5 Torx screwdriver, remove the two remaining 5.0 mm screws.
-

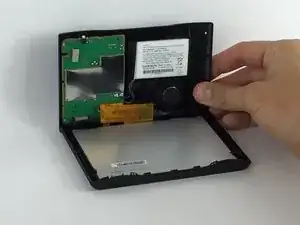

Lift the board from its housing and then detach the plug coming from the battery.
-
-
-
If the battery is glued in place use the plastic opening tool to remove it.
-
Finally, exchange the old battery with the replacement.
-
To reassemble your device, follow these instructions in reverse order.
