Garmin Nuvi 56LMT Display Screen Replacement

Geschrieben von: Dustin Saxon
  • Kommentare: 0
Garmin Nuvi 56LMT Display Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 25 Minuten

Einleitung

This guide will show you how to replace the display screen on your Garmin Nuvi 56lmt.

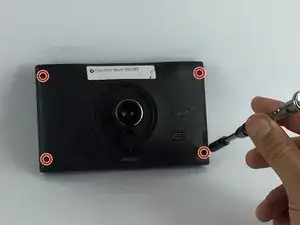

  1. f1LqsMsBtjRxGI5X

    • Power down the device before proceeding.

    • Locate the four 11.0 mm Torx screws and remove them with the T5 Torx screwdriver.

  2. WCWPPvVIwma4iWDL

    • Find the crevice where the front and back of the device meet.

  3. NYF4Po2faKHeEMef

    • Run the plastic opening tool around the border of the device until it can be easily pried open by hand.

    • Be careful to not damage the ribbon cable by completely pulling the back from the front.

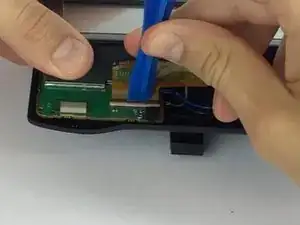

  4. t2uNwVINaZs3JSRL

    • Carefully use the spudger to flip open the ZIF connector.

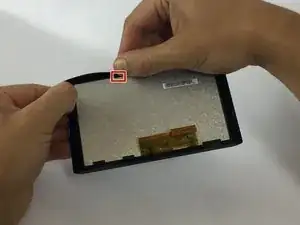

  5. 4WjJhIJVb4OCYaLQ
    4WjJhIJVb4OCYaLQ

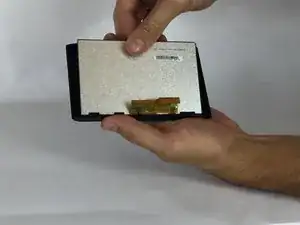

    BkwvHtyZi2sLHYA1

    • With your fingers hold back each of the clips located around the border of the screens back.

    • Pull screen up and slide out in the opposite direction of the ribbon to avoid snapping the fixed clips.

Abschluss

To reassemble your device, follow these instructions in reverse order.
