Garmin Nuvi 65LM Screen Replacement

Geschrieben von: James Crocitto
  • Kommentare: 1
Garmin Nuvi 65LM Screen Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

This guide is meant to teach how to replace the screen of a Garmin Nuvi 65LM.By An easy fix for anyone with a cracked or malfunctioning screen.

  1. lBbOZitgSflaeLFO
    lBbOZitgSflaeLFO
    MxxX4XoX3EYAj6FR

    • Place the device on a flat surface with the screen facing down.

    • Remove the four 4.80 mm T5 screws on the corners of the device with a T5 Torx screwdriver.

  2. 4WYENGXyDS16upV1
    4WYENGXyDS16upV1
    tmNxdkrM4NYUBRVM

    • There is a ribbon cable that will still connect the front and back panels once they are pried part.

    • Use the plastic opening tool to gently pry apart the front and back casing panels. Repeat this at multiple locations around the edge of the device. You should hear the clips that hold the front and back together pop apart.

    • Once there is a large gap between the from and back casing panels, use your hands to separate the two halves.

  3. LiHaJFSQlhmGm23p
    LiHaJFSQlhmGm23p
    W2T6qjjUFSNtFkUt
    aPusVqUejemeBjY6

    • Use a spudger to pop up the ZIF connector tab that fastens the ribbon cable to the motherboard.

    • Gently pull the front panel away and set it on your flat work surface.

  4. VVPuruBBYXdnm1HY
    VVPuruBBYXdnm1HY
    AUvkGiEygMfTHDIB

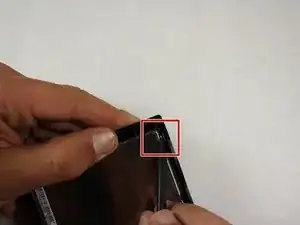

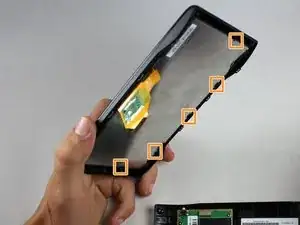

    • Use the flat end the spudger to push back the casing clips that hold the screen onto the front casing.

    • Apply light pressure to the front of the screen as you push the casing clips back. This will keep the clips from clicking back into place.

    • Once all clips are pushed back, the screen will easily lift away from the front casing panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
