Garmin StreetPilot c320 LCD Screen Replacement

Geschrieben von: Arturo Barajas
  • Kommentare: 0
Garmin StreetPilot c320 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

For this guide you will be opening the device, but it is fairly simple. Before you begin disassembling the device, be sure the power is off.

  1. aGpWPKGBXkPR3G4V
    aGpWPKGBXkPR3G4V
    qWoGfE5LLlOwOCX2

    • Wedge a plastic opening tool in between the outer frame and the rear panel assembly.

    • Pry the outer frame off the perimeter of the rear panel assembly.

    • The cover will easily pop off.

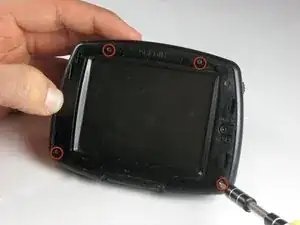

  2. FTyabHJuthiOtUXj
    FTyabHJuthiOtUXj

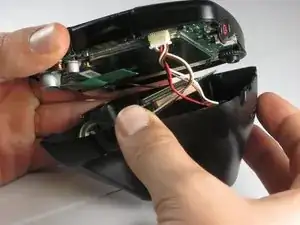

    R6ScWTQqrkhVQkaP

    • Remove the four #00 Phillips screws securing the front case assembly to the rear case assembly.

    • Carefully lift, but do not completely separate, the front case assembly from the rear case assembly.

    • Be extremely cautious when separating both halves, as the rear case assembly is still attached to the front case assembly via a few connectors.

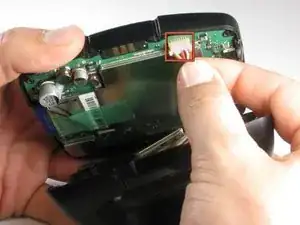

  3. p45vNMvFrD4jelvb

    • Gently pull the battery cable connector from its socket on the motherboard.

    • The second connector can remain attached to the motherboard, but be careful not to break the connector while handling both halves of the device.

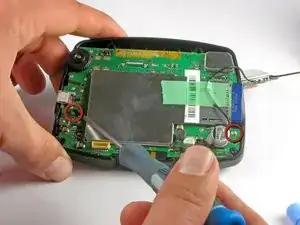

  4. FXjGh5aXwbCFjtKZ

    • Remove the two Phillips #00 screws securing the motherboard to the front case assembly.

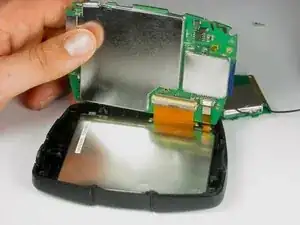

  5. DZvM4iUpu5BhZYJr

    • Slightly lift the motherboard upwards to reveal the LCD assembly.

    • Do not remove the motherboard yet, as it is stil attached to the LCD.

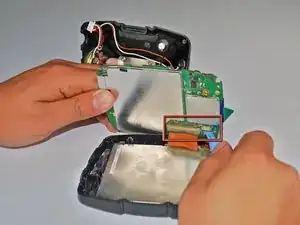

  6. QrjocAnoij3CIbHB

    • Use the edge of a plastic opening tool to flip up the retaining flap on the LCD ribbon cable ZIF socket.

    • Be sure you are prying up on the hinged retaining flap, not the socket itself.

    • Use the plastic opening tool to pull the LCD ribbon cable out of its socket.

    • Disconnect the right connector using the edge of a plastic opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
