Garmin Vivoactive HR Display tauschen

Geschrieben von: Chris Corry
  • Kommentare: 23
Garmin Vivoactive HR Display tauschen

Schwierigkeitsgrad

Mittel

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Für diese Anleitung brauchst du den iOpener und den schwarzen Spudger, um das kaputte Display vom Gerät zu entfernen. Nach dem Displayaustausch ist das Gerät nicht mehr wasserdicht.

  1. eZvKwPOer3DaGZNP

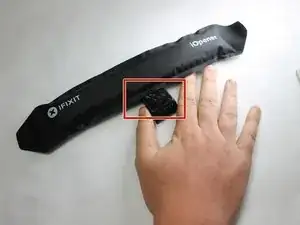

    • Lege einen erwärmten iOpener 30 Sekunden lang auf das Display, um den Kleber aufzuweichen.

  2. rQhxDvLagXrLHN1C

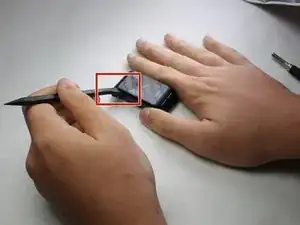

    • Setze einen Spudger zwischen Display und Gehäuse der Uhr ein.

    • Heble mit den Spudger nach oben und führe ihn um die Kanten des Displays herum, um es vom Gehäuse abzulösen.

    • Das Display ist noch mit Flachbandkabeln verbunden, entferne es deshalb noch nicht vollständig.

    Where can you purchase a new screen? A lot of people are having this issue.

    Joshua Clem -

    Could you find one yet?

    e.g.labuschagne -

    What would be cost of replacement of Screen for Garmin Vivo -HR

    Harpreet -

    how to reach the battery

    gilles PIERSON -

  3. gR14bnXKA4EOUxVp

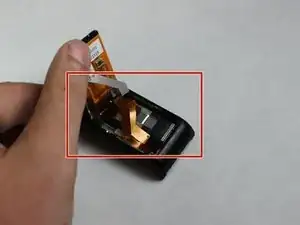

    • Hebe den Touchscreen an, um die Flachbandkabel freizulegen, die ihn mit der Hauptplatine verbinden.

  4. qOmsRkyoEGmWuITc
    qOmsRkyoEGmWuITc
    MnwBR16aDGDfZpw6

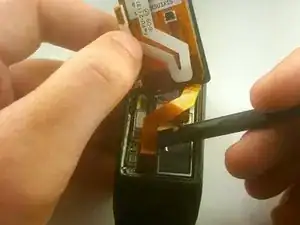

    • Verwende das flache Ende eines Spudgers, um die Stecker des Displaykabels von der Hauptplatine zu trennen.

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Anweisungen dieser Anleitung in umgekehrter Reihenfolge.

Tinte & Feder

Chris Corry

Mitglied seit: 05/07/18

256 Reputation

19 Kommentare

Hello,

thanks for this. Where can i buy the new screen?

Bowland Olan -

Nice guide! Thanks. But I can’t find any parts to repair my watch

Christoph Freydank -

Yeah, where can we get the parts from? Also how hard is it to change the battery? Thanks for your help :)

Rick -

What type of glue i use to connect the display an the body?

culibrkboj -

I’ve only found a couple sources for the adhesive.

https://www.ebay.com/itm/New-Adhesive-Do...

https://www.smitacn.com/double-sided-tap...

Matthew Lazarowitz -

This one is the best way to glue display and body staying flexible and resistant to water and over a wide temperature range.:

https://fr.aliexpress.com/item/329544137...

Bruno Junca -

Dove è possibile acquistare il dispay per il vivoactive hr??

grazie per l’aiuto

Michele -

Hello,

thanks for this. Where can i buy the new screen? for this

Darren Letten -

Hi There

Where did you buy the display?

Regards

pearlduck -

Where i can buy the display?

pearlduck -

What’s the point of making a how to if we can’t find the parts,

Shailendra Khatri -

Hi, how to change battery???

Erviajero minema -

Where is the backlight located in all of this?

Sam -

If only the touch part is broken, you can change only this one.  you have to heat the whole and insert a solid wire between the LCD screen and the touch part to separate them.  then clean the LCD screen and use a UV glue to glue the new touch screen.  it costs half as much as buying the whole thing.

https://fr.aliexpress.com/item/400006421...

Glue: https://fr.aliexpress.com/item/330387129...

UV light for example: https://fr.aliexpress.com/item/328080542...

Bruno Junca -

Where is the backlight located in this thing? Is it built into the screen or something separate?

Sam -

Hello, is the watch still water resistant, after changing the display?

Mr. GóÒdKaT -

pre-owned screen from ebay, (new/never used) for £5uk.

The first instruction about entering via the top left corner is nigh on impossible unless you’re willing to damage the plastic surround which is in effect a raised bezel to protect the glass.

Since the reason for swap was a slightly cracked screen, I broke through the corner of the glass and unpeeled the shards of screen from the inner frame using heat and a scalpel to remove the adhesive. I burned through 10 minutes a few times doing this, but once the frame was clear, the replacement process was an absolute breeze.

No gasket/seal was available, so I used 1mm double-sided and followed the frame as a guide, it’s overlapped, but I’d be wary of suggesting it’s still waterproof.

Thanks for the guide, it was super helpful, and without it, I would never have attempted the repair!

Womble Messiah -

I purchased my new screen through Amazon. It will take a month, or so, to get it shipped to you, as it comes from China. Received mine today and have not had chance to install it yet. but it looks good.

eaglerest -
