Garmin eTrex 22X Joystick Replacement

Geschrieben von: Zachary M Pereira
  • Kommentare: 0
Garmin eTrex 22X Joystick Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. CwXXnHXqMmhGAYJM
    CwXXnHXqMmhGAYJM
    vTtSayyYPU1YOHbI

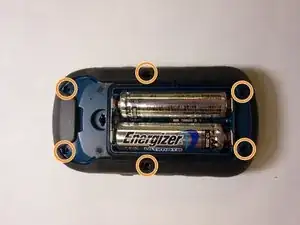

    • Lift the handle and turn it counter clockwise.

    • Use a TR6 screwdriver to remove all six 11 mm case screws.

    • Remove the battery housing.

  2. QoN1qgJ42AQqqVVg

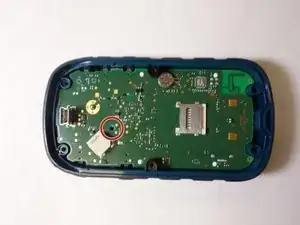

    • Use a T4 screwdriver to remove the single 5 mm screw that secures the motherboard.

  3. 4KNvUWC6VS2CX5pP
    4KNvUWC6VS2CX5pP
    DTvv5iWOZxUgAGWY
    cqdSGfOybGTysWO5

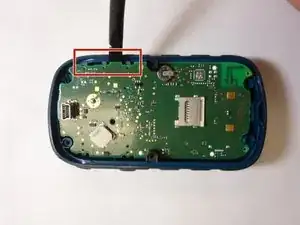

    • Using a plastic pry bar lift up on the indicated area.

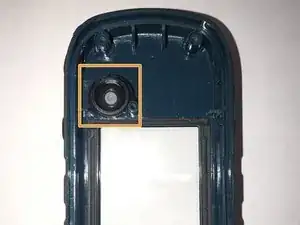

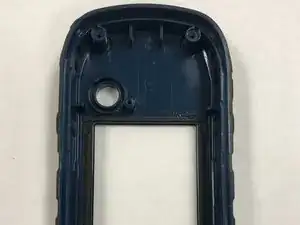

    • Use thumbs to pull apart joystick

Abschluss

To reassemble your device, follow these instructions in reverse order.
