Garmin fenix 6X Sapphire Back Cover Replacement

Geschrieben von: matthew long
  • Kommentare: 0
Garmin fenix 6X Sapphire Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 - 10 Minuten

Einleitung

The Garmin fenix 6X Sapphire is a fitness watch identified by Garmin as part numbers 010-02157-10, 010-02158-10, and 010-02159-10, depending on the size of the case. If you know that the back cover on the watch needs replacing, this guide will help you do so.

A heat gun can be useful for removing the back cover as it is glued to the body of the watch but be careful when using the heat gun. Please use with caution. The high setting can ignite flammable items and may cause burns if aimed at your skin or clothing. Heat guns may produce residual smoke when turned off the first few times and should always be used in a well-ventilated area.

  1. TbZq1GtVCKH1oQEr

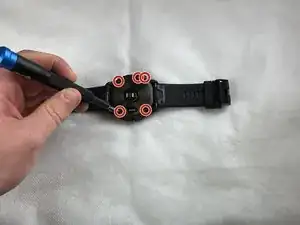

    • Flip the watch so the face is down.

    • Remove the five 6 mm T5 Torx screws on the back of the watch.

  2. YnPC5UNKSaLiElvp
    YnPC5UNKSaLiElvp
    ycuWowqrFtH2ISrn
    nmjZm4MFEhsWDm1v

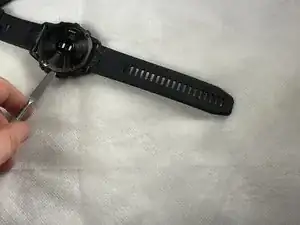

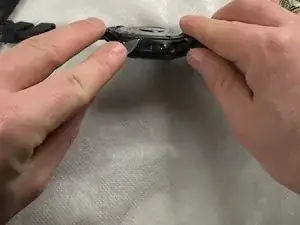

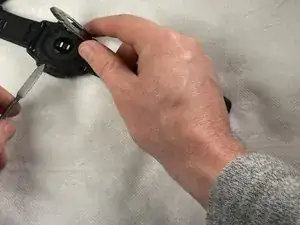

    • Use a spudger to pry the back cover of the watch off by placing it under the seam of the back case.

    • The back cover is glued on and may be difficult to remove. It might help to heat the back cover before prying in order to soften the glue. If doing so, be careful to not burn yourself.

    • This step requires a good bit of force to pry or apply heat back cover off because the back cover is glued. Be careful not to the break cover from too much force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
