Garmin inReach Explorer Plus Antenna Replacement

Geschrieben von: Sean Kelley
  • Kommentare: 0
Garmin inReach Explorer Plus Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 35 Minuten

Einleitung

The Garmin inReach Explorer Plus is a backcountry GPS device. This guide shows how to remove and replace the Iridium antenna of the Garmin inReach Explorer Plus. The antenna allows the device to connect to satellites to find your location. See our troubleshooting page here for possible symptoms. WARNING: Before disassembling device, make sure that the device is turned off and there are no signs of a swollen battery or shattered glass in the device.

  1. oO1LGiBPQgBWqPMG

    • Using the TR6 Torx Security screwdriver, remove six 10 mm screws from the back cover of the device.

  2. GBhMaLZDvbiAlu34

    • Remove the back cover.

  3. LMDtGQEiRFn4f2Ag
    LMDtGQEiRFn4f2Ag
    11qTmEJWXOEEkfJo

    • Gently grasp the battery wire and disconnect it from the device.

    • Remove the battery from the device.

  4. cqRheqnurVyZZBsy
    cqRheqnurVyZZBsy
    1AMcPSPJ2fA5EOlc

    • Using the T5 Torx screwdriver, remove the six 6 mm screws from the motherboard.

  5. AG4UWTDQADGIlJlx
    AG4UWTDQADGIlJlx
    QaBhFCjAdoL5mfYi

    • Disconnect the LCD screen from the motherboard by lifting on the flap with the nylon spudger.

    • The metal spudger should only be used for serious prying power. If used incorrectly, the metal spudger may damage the components of a device.

  6. 5CT4AZZbGAhQlMWP
    5CT4AZZbGAhQlMWP
    nZShecVVfMoqQo5V

    • Disconnect the antenna from the motherboard by lifting the wire with a nylon spudger.

  7. 4qIHRdWyNU3YtODA
    4qIHRdWyNU3YtODA
    ZZLb4AwJ2aGGKmFh
    MSMmuo25JW12ipXg

    • Gently lift the motherboard up and out of the device.

  8. GmaHePADHxgFEMgq
    GmaHePADHxgFEMgq
    DS36vdaU2uGExann

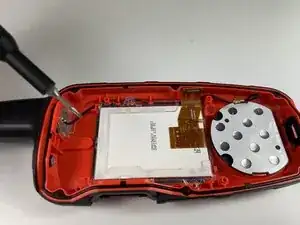

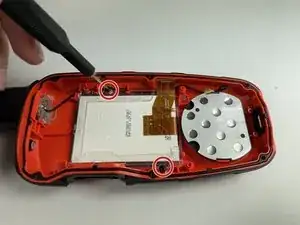

    • Using the T5 Torx screwdriver, remove the two 6 mm screws from the LCD screen.

  9. 3GxEToEiEXhR551w
    3GxEToEiEXhR551w
    GpZTgvXkebIlcJD1
    lN3vofIIIDsokdJK

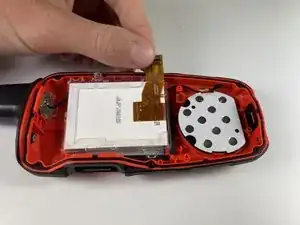

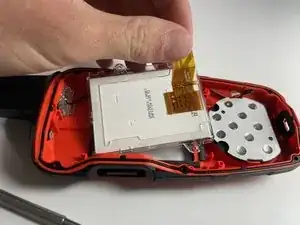

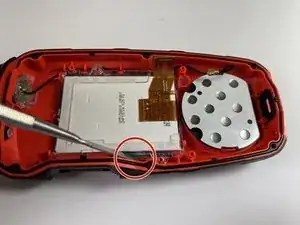

    • Use a nylon spudger to separate the LCD screen from the main body and remove the LCD screen.

    • The metal spudger should only be used for serious prying power. If used incorrectly, the metal spudger may damage the components of a device.

  10. v1bKonrAfotVPBlh
    v1bKonrAfotVPBlh
    pswK4Ivi4oVaBpiV
    Tl54BP1fHP5KrNCJ

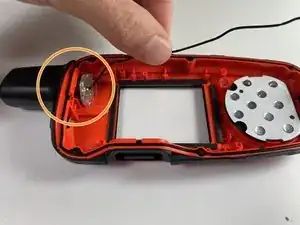

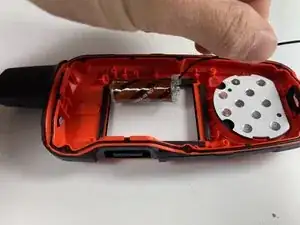

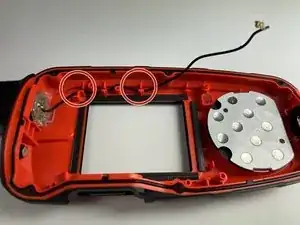

    • Gently pull out the antenna wire and remove the antenna from the device.

    • The antenna should now slide out easily. If the antenna is stuck, use the spudger to gently dislodge the antenna from its housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
