Garmin inReach Mini Battery Replacement

Geschrieben von: Ellie Taube
  • Kommentare: 0
Garmin inReach Mini Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 35 Minuten

Einleitung

This guide demonstrates how to replace the battery of a Garmin inReach Mini. This devices utilizes a rechargeable, lithium ion battery. The battery is located on the inside of the back hard case. When removing the battery, make sure all necessary cables and power sources are disconnected from the battery in order to prevent an electrical hazard. After replacing the battery, it is crucial to dispose of the old battery at a specialized e-waste collection site or battery-recycling location.

  1. rXKdfKvaPXDg4VIF

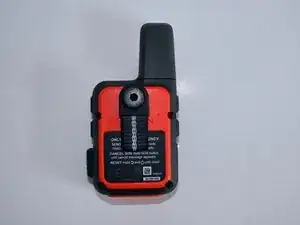

    • Place the device on a level surface with the back hard case facing up.

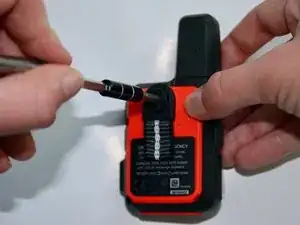

  2. 4mH6cMsk1KLQTD3M
    4mH6cMsk1KLQTD3M
    oKffDJDTfsG5cNqY
    ZLTUfQTGDVsME411

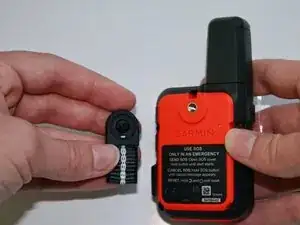

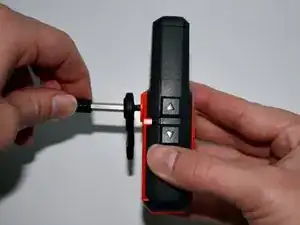

    • Use the T5 to remove the 1.9mm screw attached to the nylon strap.

    • Remove the nylon strap.

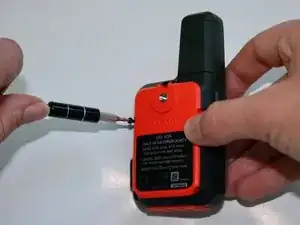

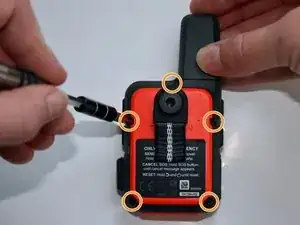

  3. HLITCFxlGiuisDVU
    HLITCFxlGiuisDVU
    xpxbJGvxMOKFxBIW
    AQZVRrOExACBLWUZ

    • Remove the five 1.8 mm screws located on the top, sides, and bottom corners of the backside of the device.

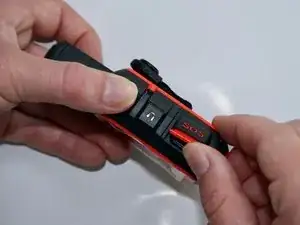

  4. 6DDUxGIZN3FgQr6H
    6DDUxGIZN3FgQr6H
    MhmidrkAdPdoqcRT
    jgHmlHZTEjnFldJj

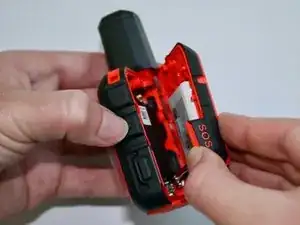

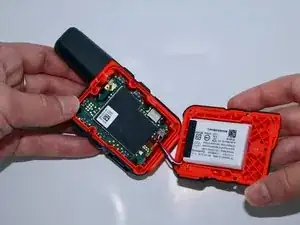

    • Lastly, lift the protective cap on the side of the device that states "SOS". Slowly pull it to the right in order to remove the back hard case.

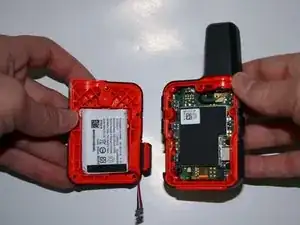

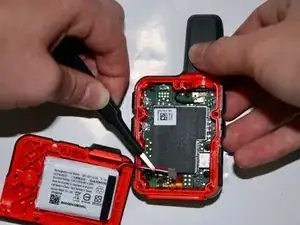

  5. WOSGlMOvTdIFZUJV
    WOSGlMOvTdIFZUJV
    bReqRnOPDQr25LvX
    4fQgUpCkjwnBo2Gr

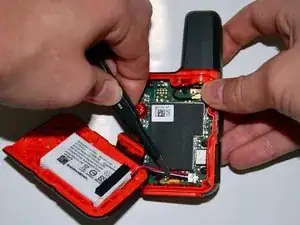

    • Using the precision tweezers with the round tips, detach the battery connector from the motherboard.

    • Disconnecting the battery stops the flow of power into the motherboard. This is for your own safety.

    • If utilizing this guide as a prerequisite to replacing the motherboard, it is crucial not to damage the cable connecting the battery to the motherboard. When the new motherboard is introduced, it will need to be reconnected with that cable.

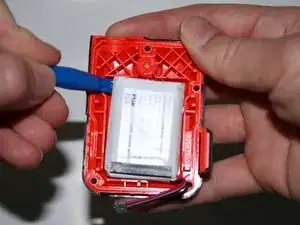

  6. uigVepCLr4xWrW1b
    uigVepCLr4xWrW1b
    IcRILeBtJJonRX3N
    SNZjVckFLFtAijZl

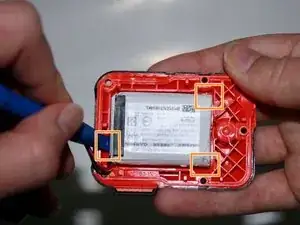

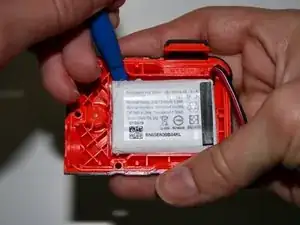

    • After removing the back hard case, users can access the battery on the inside of the back hard case.

    • Take the iFixit opening tool and insert it into the small crevices on each side of the battery. Once inserted, apply pressure downward in order to lift the battery up. Repeat on all 3 corners.

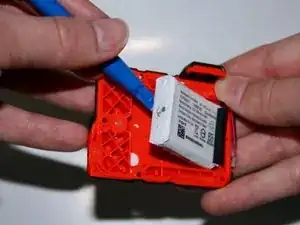

  7. aUg4PssrvBxoLy2A
    aUg4PssrvBxoLy2A
    3Zdeek4ELc3bBeLx

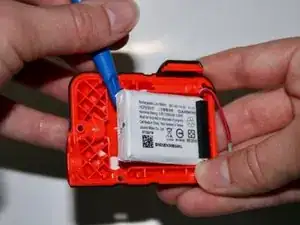

    • Create leverage by inserting the opening tool underneath the battery. Lift the battery up until it detaches from the case, then remove the battery entirely.

  8. ePiYsLRyLIbmwyHX

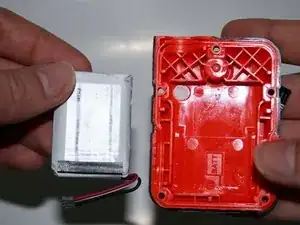

    • Then using the precision tweezers with the round tips, lightly pull the battery out from the case.

    • The battery is attached to the back hard case with an adhesive.

    • Dispose of the lithium ion battery in a safe manner in order to prevent electrical hazards. Keep the battery dry and cool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
