Garmin nüvi 3590 LMT Glass Screen Replacement

Geschrieben von: Kayla Katz
  • Kommentare: 2
Garmin nüvi 3590 LMT Glass Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 30 Minuten

Einleitung

Remove the battery to avoid electrocution when working on the device. Be careful to not cut yourself if the screen is cracked.

  1. rYETSPNqrokvGLoM

    • Turn the device off by pressing and holding the power button on the top left of the device.

  2. GUvXgbgPOFHaSUUN

    • Use the plastic opening tool to separate the tabs on the black back cover of the device by leveraging the tool against the frame around the perimeter of the device.

  3. BqjWDE2kGEjd3Qj4

    • Once all of the tabs are popped out, take the back cover off.

    • The back cover is a separate piece from the device.

  4. syfoD1crdbILF4lS
    syfoD1crdbILF4lS
    WhL5bSOT5bEHXOT4

    • Using the plastic spudger, carefully remove the white tab connected to the battery from the device by pulling the tab in the opposite direction from which it is connected.

  5. eMdlKdD1IFYonO3T
    eMdlKdD1IFYonO3T
    OrYvEDIJyUY6gRGn
    ECVNBIxnOAGCVZgZ

    • Use the plastic spudger to lift the battery up and away from the device.

    • Do not puncture or bend the battery. Serious health complications could occur.

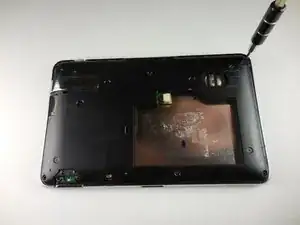

  6. aSDb3LJ6N5eAcJdy
    aSDb3LJ6N5eAcJdy
    pVsB2yBVbvbuNDto

    • Using the T5 bit, unscrew the four 5.7mm screws in the four corners on the back of the device.

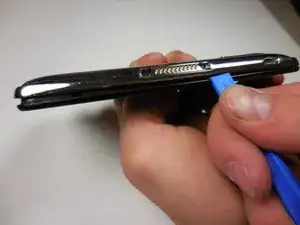

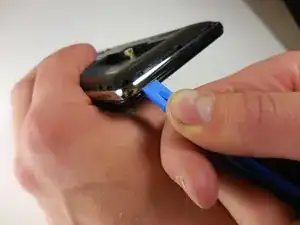

  7. n6Lh6LZnQ4ADe4gf
    n6Lh6LZnQ4ADe4gf
    Sk1Dhdo5bRIOhZ6v
    eAw5Ec1VxkDjSD5j

    • Use the plastic opening tool to leverage up on the tabs between the black screen and the metal frame.

    • Do not forcibly separate the two pieces after the tabs have been popped. There are connections between the two pieces that could be torn.

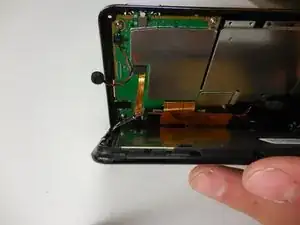

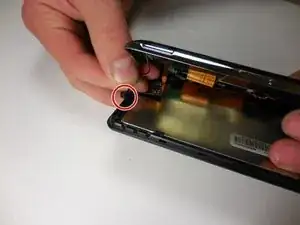

  8. Mirn6cXGoLVUiOV5
    Mirn6cXGoLVUiOV5
    rhCoQFXCRZkSp1cx

    • Using your fingers, pull up on the red and black wire from the back of the screen.

    • This wire is part of the speaker, so be careful not to damage it.

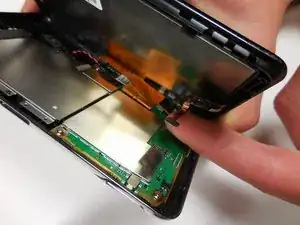

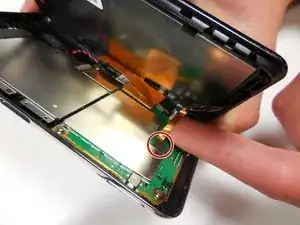

  9. cHjb1MKiSOZMR2Pk
    cHjb1MKiSOZMR2Pk
    rEFQKOSPFiEFVNvU

    • Pull up on the smaller orange tab with your finger from the circuit board.

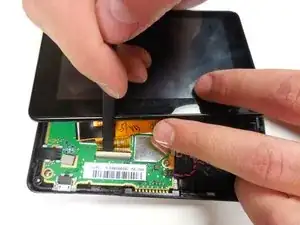

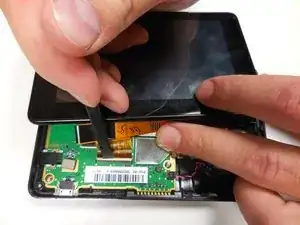

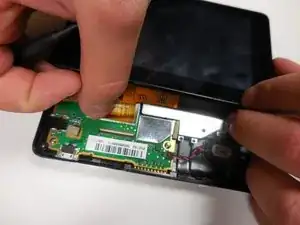

  10. EWhFC5OxDCNCYtym
    EWhFC5OxDCNCYtym
    ImTbucWDrHmApojH
    DZToFCxyXDpj1mrG

    • For the larger orange connection, there is a white tab holding the connection to the circuit board.

    • Lift the white tab gently with the plastic spudger and remove the orange connection from the circuit board.

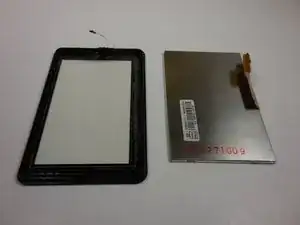

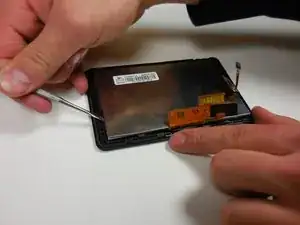

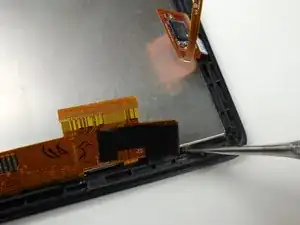

  11. yhRRRNYQVKPjhHxg
    yhRRRNYQVKPjhHxg
    b3kdyxCqsIvJW1oM
    DFaYrwBcHRv1Bd4W

    • Use the metal spudger to leverage and lift the metal board from the glass paneling around the perimeter of the device.

    • Be careful to not damage any connections.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kayla Katz

Mitglied seit: 11/03/15

576 Reputation

2 Kommentare

Where can I buy the glass screen digitizer?

Bryan -

Thanks for instruction, it helped me a lot, but removing of battery in step 5 makes no sense. The battery stays on the metal plate and does not disturbs for next steps. Of course the cable must be disconnected from the board to make it powerless.

BR

Dennis

Dennis Kiel -
