Garmin nuviCam LMTHD Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

15 Minuten

Einleitung

This guide will be helpful if you are attempting to replace your nuviCam LMTHD battery. You might have a little trouble opening the device, but it does come off with a little force using the plastic prying tools. You might need to replace the battery if your device is not holding it's charge or the device is over heating. The battery is fairly simple to remove, good luck.

Werkzeuge

Schritt 1

Remove the four 6.9 mm black screws using the T6 screw bit.

Hi Anybody Knows where I can buy the screen .

floresmorales063 - 08/05/19

The screen Is impossible to find.

Robert - 13/06/19

Schritt 2

Pry the device open using a plastic opening tool.
We suggest starting from the dash camera side for easier opening
You may have to use a little force, the screen is hard to remove.

Schritt 3

Disconnect the black and red wire from the screen.

The little plug on the screen pulls out. Remove the tape carefully.

Gerald Knoch - 03/10/17

Schritt 4

Disconnect the orange strip by flipping up the connector with a plastic opening tool and sliding the cable out.

Is there a secret to reattaching the screen ribbon? Mine won’t go back in the slot.

Matthew Craven -

Schritt 5

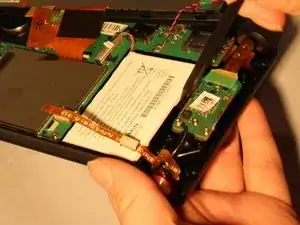

Locate the white box in your device which is the battery.

Schritt 6

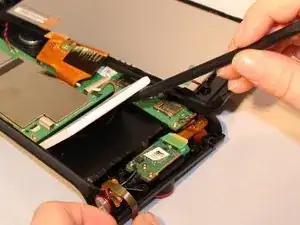

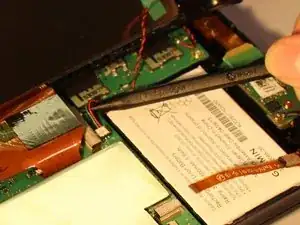

Disconnect battery from device pulling the green, red, and black wires from motherboard.

Schritt 7

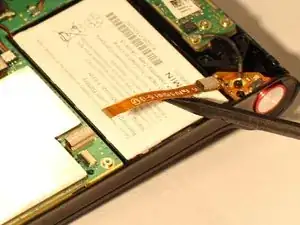

Disconnect orange cable strip laying across battery by sliding it out of connector .
It may be at your benefit to use tweezers. It will be easier to reconnect the orange ribbon later with this tool.
