Garmin nuviCam LMTHD Speaker Replacement

Geschrieben von: Riki Wippel
  • Kommentare: 4
Garmin nuviCam LMTHD Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. KfiAcrZ2UShcDkrl
    KfiAcrZ2UShcDkrl
    nM6JTLSUwLfltJLc

    • Remove the four 6.9 mm black screws using the T6 screw bit.

    Hi Anybody Knows where I can buy the screen .

    floresmorales063 -

    The screen Is impossible to find.

    Robert -

  2. qDdIx1BfhyL1IVgG
    qDdIx1BfhyL1IVgG
    Q5qYUEBXHxCfjy5W

    • Pry the device open using a plastic opening tool.

    • We suggest starting from the dash camera side for easier opening

    • You may have to use a little force, the screen is hard to remove.

  3. MeOquDiGsdBdwfHo

    • Disconnect the black and red wire from the screen.

    The little plug on the screen pulls out. Remove the tape carefully.

    Gerald Knoch -

  4. KQvwF2CaB3RNEPui
    KQvwF2CaB3RNEPui
    yyuEqjSVoE6cfrXd

    • Disconnect the orange strip by flipping up the connector with a plastic opening tool and sliding the cable out.

    Is there a secret to reattaching the screen ribbon? Mine won’t go back in the slot.

    Matthew Craven -

  5. 12qdLeOVFJbCl5Sr
    12qdLeOVFJbCl5Sr
    fMGgF1GgabbVSoYP

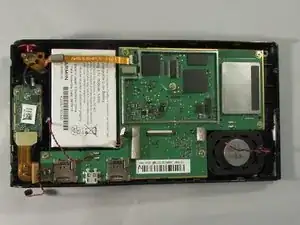

    • Locate the speaker in the corner opposite of the dashcam.

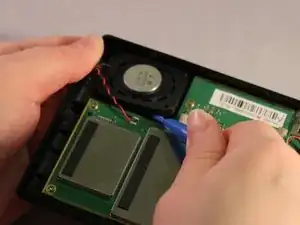

    • Pry speaker out of device using a plastic opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
