Einleitung

In GBB the magazine does most of the work so it is good to know how to work on it.

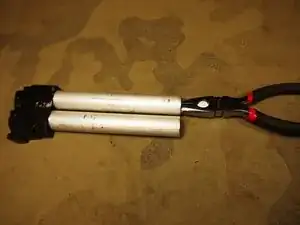

  1. vJwxqcSsMQd4xANg
    vJwxqcSsMQd4xANg
    MqUicOmJSWBARgGG
    EGSuIucY2Eh12HxI

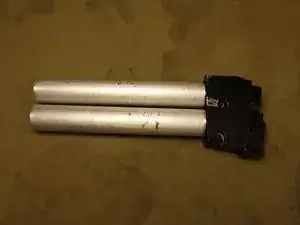

    • If you have taken down the magazine this far you can start screwing the tubes and caps. Either end of the tube will work.

    • The o-ring can be a little crushed and still work effectively just make sure the the o-ring is evenly in position.

    • The pliers technique used in the disassemble can also be used to screw the tubes back on to the rest of assemble.

    • The tubes and caps need to tightly screwed down but not overly forced.

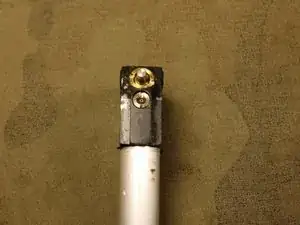

  2. ygsVFgyDsVPUMsEY
    ygsVFgyDsVPUMsEY
    4JLytwNkovbYyAbI
    KZhVQlAgC6nVr1JB
    • With the tubes and caps in place now is a good time check for leaks.

    • If your valves have been removed begin putting them into place.

    • Make sure that threads are line up and do not apply too much for to the valves.

    • As mentioned in the disassemble using the proper valve removal tools is always best but with care you can use standard tools as shown.

    • Once everything in place you can gas up the magazine. I recommend using a green gas can that is not at full pressure to save on gas if it turns out that there still is a leak. If the lower pressure gas does not leak try filling the magazine with a full can of gas to see if it can handle the higher pressure.

    • If your trying find where a leak is coming from you can use the silicone spray on hole magazine and look for the bubbles.

  3. kygOjM6pgJL3USm1
    kygOjM6pgJL3USm1
    hXA4VBVIOByu6cIh

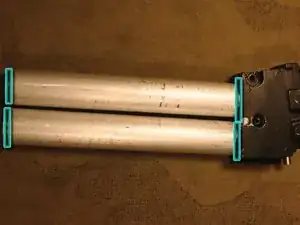

    • If you are still struggling with leaks. You can use Teflon tape on the treads and silicone based plumbers grease on O-rings that do not move back and forth.

  4. aBvUYAMIYPOngGUE
    • You can now add the bb track to the rest of the magazine core.

    • Once in position make sure the nut is into position on the other side of the magazine and then add the screw back on as shown.

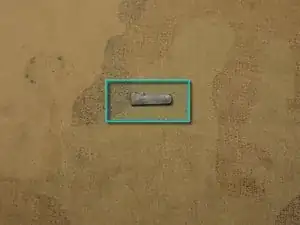

  5. F3B4UkQMvylCZuis
    F3B4UkQMvylCZuis
    pwWbpTXnAb53y3wr
    • Now you can put the small plastic piece that allows you keep the bb follower down back into position.

    • Make sure the side of the piece that sticks up is set to the back.

  6. EgflVOVMhCqOXcXV
    EgflVOVMhCqOXcXV
    pUSafGrNbfcgXQpH

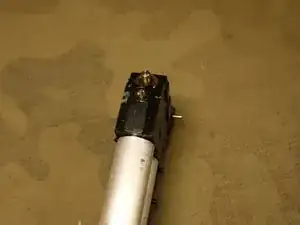

    • Now add the plastic top section back onto the mag and add the pin to hold it in place.

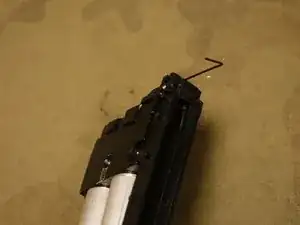

  7. vTqx1FFtlOodDjAN
    vTqx1FFtlOodDjAN
    VspnQhBkpcfYZMcn
    • For adding the bb retention spring hold it into position with the hook section going down word and take the tiny hex screw and drive it in.

    • Make sure there is no cross threading.

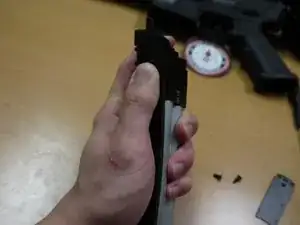

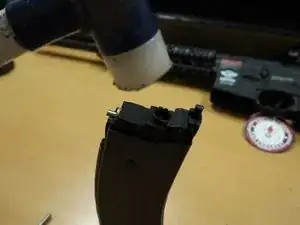

  8. MqfjjRTinDWvMBpf
    MqfjjRTinDWvMBpf
    jDKfenF4rEhXa3HP
    N115blPtmkpWkLWO
    • Take the bb follower and set into the top of the of the bb track.

    • Then take the spring and set it into position.

    • With the core of the magazines all re-assembled, hold the spring in place then slide it back into the outer shell.

    • Tap the flat section on the top to get the core into position.

  9. VR2tSgwLF3lWLUkD
    VR2tSgwLF3lWLUkD
    aYJT2NoOFHGVLoYt

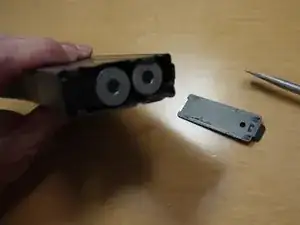

    • Now slide the bottom cover back into position.

    • This might take a slight amount of bending int get into place.

    • Be careful the metal is very soft.

  10. FCrmAEEA31sqNbCr
    FCrmAEEA31sqNbCr
    c3QvVWGEQEurVQQ6

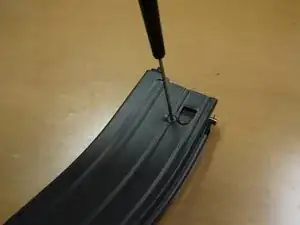

    • Now place the two 2mm hex side screws back into the position.

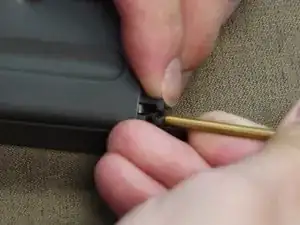

  11. HXEuHxPEQPIUqlxr
    HXEuHxPEQPIUqlxr
    vlDki5iHhHkcrCFR
    • If you took the bb retention piece out earlier or it came out mistake when unloading bb's this step will show you how to put it back.

    • Use a tool to hold back the spring. Once it's back grab the leg of the spring with needles nose pliers.

    • Then take the retention piece and slide it back into place.

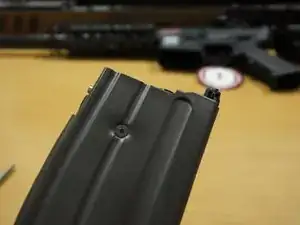

  12. KDWMLBo1nRaLJR2w
    • Now you can have a fully assembled and well functioning mag.
