Einleitung

  1. Yr3DVfNRXuLoMm2n
    Yr3DVfNRXuLoMm2n
    fUGTuOfRqokllQXw
    vATARrcha2nFTI2N

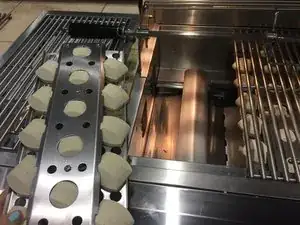

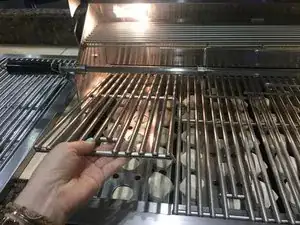

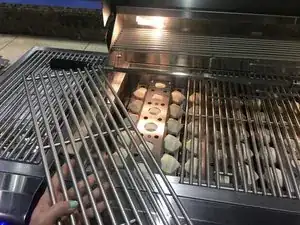

    • Carefully lift grill plate located above briquettes

  2. BK1mXJKFIf4TKVQv
    BK1mXJKFIf4TKVQv
    O6OnMn4fQ2UoywDU
    oTGSQOgHN6ltDdWt

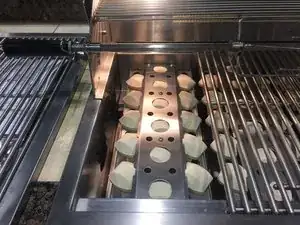

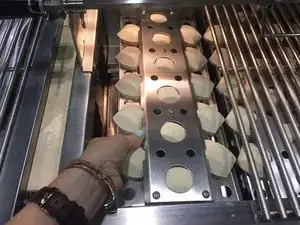

    • Carefully remove entire ceramic briquette casing from above the stainless steel burner.

  3. VfcdkFUgX5Qo4Qos
    VfcdkFUgX5Qo4Qos
    46sXhWdKoM5FaNlL
    QfIE12N3Ou3CseOq

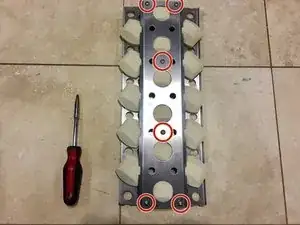

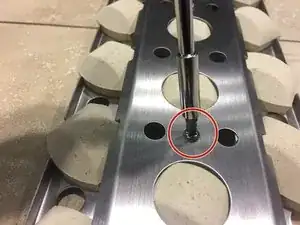

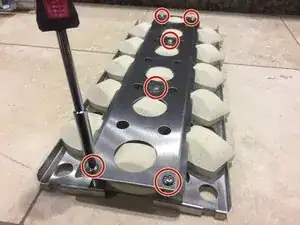

    • Locate the six screws located on top of the ceramic briquette casing and unscrew them using your phillips head screwdriver.

  4. OFsOVUQk4XGVaMRy
    OFsOVUQk4XGVaMRy
    YMPA4VRLPlMAEqOC
    eHwmhKnuoWWUP6BH

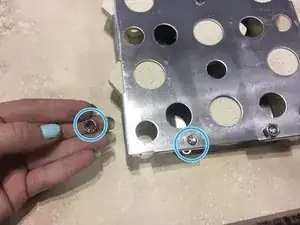

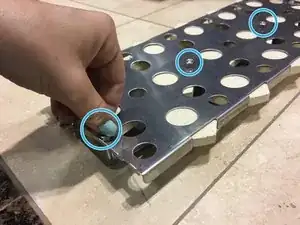

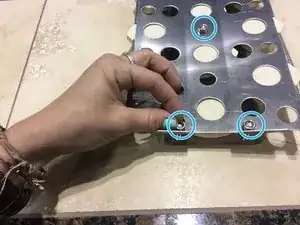

    • Using your hands, gently unscrew washers from the back of the casing.

  5. VBUfrsZJT3dfFT4A
    VBUfrsZJT3dfFT4A
    wl6CSrP6eFJsxSEj
    JFZWE1SMMqlWOvJx

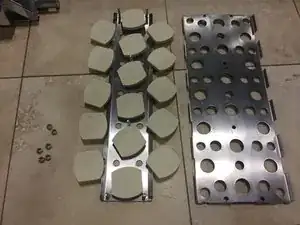

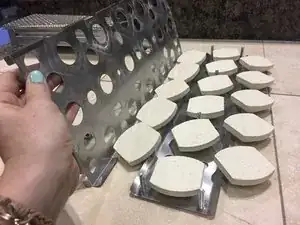

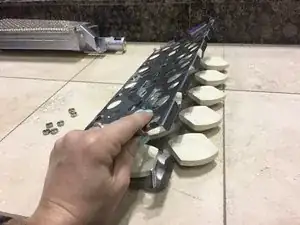

    • Separate the front and back metal casings surrounding the briquettes.

  6. xYngeNwWfEMVXYHg

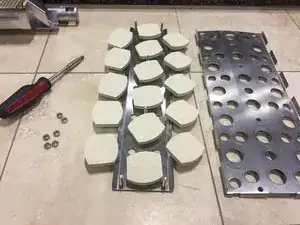

    • Take out old and used briquettes and dispose of them. (They will probably be black and tarnished)

  7. vBWdoVvJT2PTDHux
    • Take 16 new ceramic briquettes out and carefully align them inside of the casing. Be sure to pay attention to where you place them, as some should be straight and some diagonal for the casing to close back correctly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
