Gateway 600YG2 Memory Replacement

Geschrieben von: Elizabeth Mazer
  • Kommentare: 0
Gateway 600YG2 Memory Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Removal of on-board memory.

  1. nikUTaQ6OUsGduvU

    • Flip the laptop over. Slide the battery release tap to the right with your index finger.

  2. PQaeIZFWxDPeusWB

    • Pull the battery cover and the battery out with your index finger.

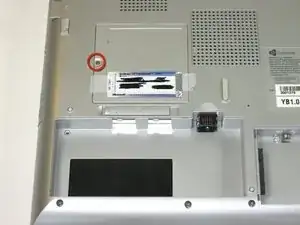

  3. lkOKkeCvBHnvDcJ1

    • Remove access cover by unscrewing captive screw.

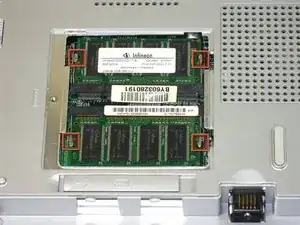

  4. JTVEtPHdQTynySuS

    • Slide locking tabs outward

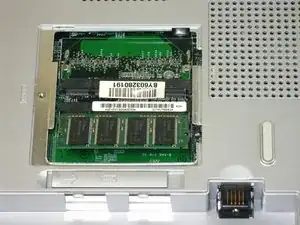

  5. 6mGwiotFbcNe3Cq2

    • Slide memory module out

Abschluss

To reassemble your device, follow these instructions in reverse order.
