Gateway 600YG2 System Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide covers the removal of the system fan. When following the keyboard instructions, there is no need to unplug it. Just fold it back to gain access to the fan.

  1. nikUTaQ6OUsGduvU

    • Flip the laptop over. Slide the battery release tap to the right with your index finger.

  2. PQaeIZFWxDPeusWB

    • Pull the battery cover and the battery out with your index finger.

  3. wH4JGHGfLa6p2lfy

    • Remove the 5 screws holding the keyboard in place.

  4. ehCgaQVbUhqvuncT
    ehCgaQVbUhqvuncT
    NoIcm25K1bPPwJjQ

    • Potential for device damage: When lifting the keyboard out, do not lift the keyboard up. Only fold back along the space bar edge.

    • Potential for device damage: Do not pull the black cable by the ribbon section. Only pull it from the connector itself.

    • Follow the black ribbon cable to the connector and gently pull straight up.

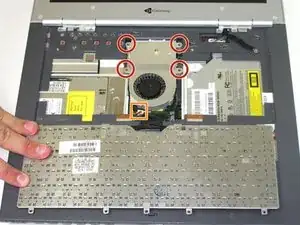

  5. GJUuONADFHCpdict
    GJUuONADFHCpdict
    AZYGUAFxnKyCJwfG

    • Unscrew the four captive screws.

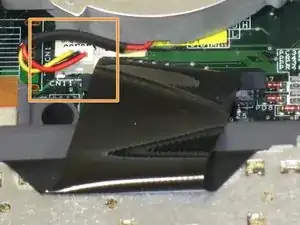

    • Unplug the fan from the system and pull it out. The fan unit should slide forward before coming free.

Abschluss

To reassemble your device, follow these instructions in reverse order.
