Gateway 600YG2 Top Case Replacement

Geschrieben von: Elizabeth Mazer
  • Kommentare: 0
Gateway 600YG2 Top Case Replacement

Schwierigkeitsgrad

Difficult

Schritte

16

Zeitaufwand

30 - 45 Minuten

Einleitung

removal of top case

  1. nikUTaQ6OUsGduvU

    • Flip the laptop over. Slide the battery release tap to the right with your index finger.

  2. PQaeIZFWxDPeusWB

    • Pull the battery cover and the battery out with your index finger.

  3. qqVCUwIrHyVK1UYN

    • Insert the spudger between the "sysrq" and "ins" keys.

    • Lift the power button panel gently located above the F12 key. Beginning with the right to the left, using a spudger (optional).

  4. wH4JGHGfLa6p2lfy

    • Remove the 5 screws holding the keyboard in place.

  5. ehCgaQVbUhqvuncT
    ehCgaQVbUhqvuncT
    NoIcm25K1bPPwJjQ

    • Potential for device damage: When lifting the keyboard out, do not lift the keyboard up. Only fold back along the space bar edge.

    • Potential for device damage: Do not pull the black cable by the ribbon section. Only pull it from the connector itself.

    • Follow the black ribbon cable to the connector and gently pull straight up.

  6. wksnqx2eTNHXSdrB

    • Take out and remove 5 screws with a Phillips #0 screwdriver.

    • The LCD hinge covers are held in place by four screws. One screw is for grounding the LCD.

    • Lift the hinge covers along the outer edges with the spudger until they become released.

  7. vVieMiKAUxUFvNnF

    • Unplug the LCD from the system board gently.

  8. vxMOwKSXVXrfBFq6

    • Using the Phillips #0 screwdriver, remove 6 screws that hold the LCD to the hinge.

  9. vILgjWVDNNSIkqsK

    • Double-check any cables connected before pulling out the LCD.

    • Remove the cable by gently pulling it out while holding down the LCD.

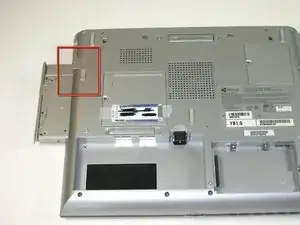

  10. OHYJ2BBKqRLknmBh

    • Slide release and push button to eject drive

    • Pull drive out.

    • When reinserting drives be sure to insert back into original slot in order to avoid interface conflicts.

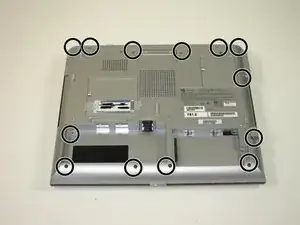

  11. vt6NIikHNW5IliKN

    • Remove the 13 screws from the bottom of the computer as indicated in the picture.

  12. E2oEEJEnM3KsRyoY

    • Remove the 2 indicated screws

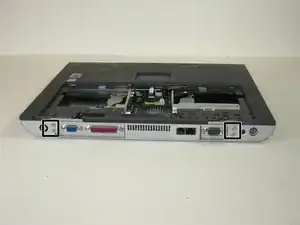

  13. DmlO14pgGhVZBWLt

    • remove the following 4 screws from the back of the case

  14. MY5WrttnCBMKBNur

    • WARNING Failure to properly do this step will damage your mouse pad ribbon.

    • Lift the plug holding the mouse ribbon about 1/16 inch or until it stops

    • remove the ribbon

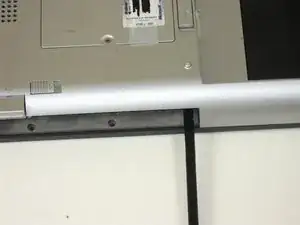

  15. GS5PGhDxnFtTf6TL

    • Insert your spudger between the upper and lower case at the drive bay closest to the battery.

    • Carefully and slowly go around the entire case unseating all plastic clips holding the upper case to the lower case.

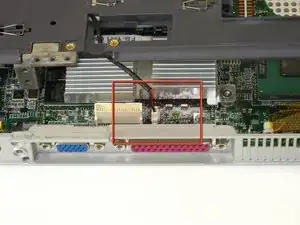

  16. kedHRxxjGQfZDJFh

    • Lift the upper case free about 1/4 inch high

    • At the rear of the case is one last connecting wire. Unplug it and remove the upper case

Abschluss

To reassemble your device, follow these instructions in reverse order.
