Gateway 600YGR RAM Replacement

Geschrieben von: Brent Bachelor
  • Kommentare: 0
Gateway 600YGR RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 - 5 Minuten

Einleitung

This guide provides the step by step directions for removing and replacing damaged RAM Logic boards in a Gateway 600YGR. There are no prerequisite guides that need to be completed in order to use this guide. A Philips Head screwdriver and the PH 1 bit are required to complete the guide.

  1. yNfXACWO2aGjD4lu
    yNfXACWO2aGjD4lu
    bSDM5QN3PQhU2Ech

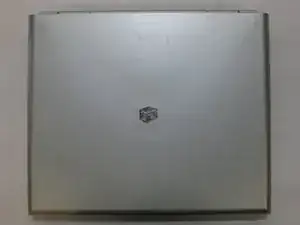

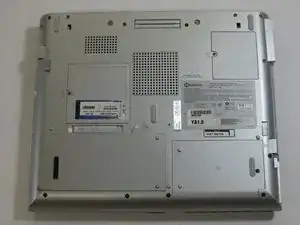

    • Flip the computer over so that the bottom of your device is face up.

  2. ZXjKFIiwxaLV6ULM
    ZXjKFIiwxaLV6ULM
    HKQ3HEFQLdR34LKx
    WIHijdmgnvwLsGWN

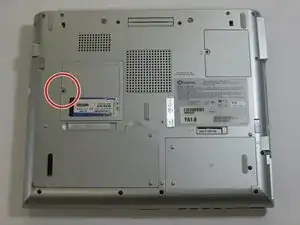

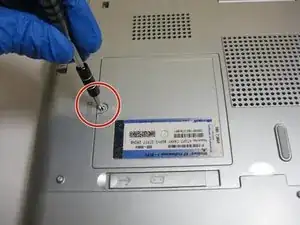

    • Use a Philips head screwdriver and the PH1 bit to remove the indicated 5.35mm screw.

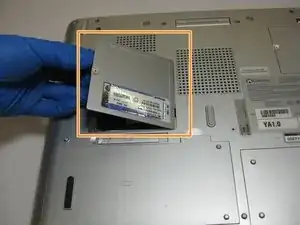

    • Remove the cover panel.

  3. KeuM3rsMo5It4r4g
    KeuM3rsMo5It4r4g
    M4Oc1StlaRivCZHT
    SedBRfe2NWuaJFRD

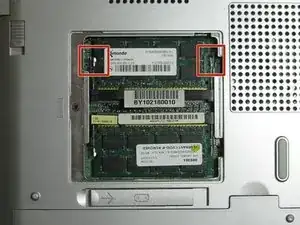

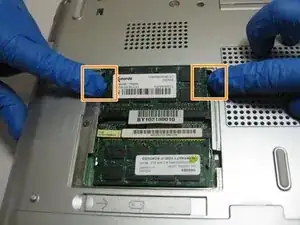

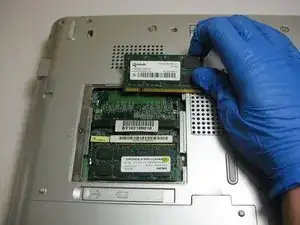

    • Locate the indicated tabs on the edges of the top RAM board.

    • Pull the tabs outward and the RAM board will release.

    • Remove the RAM board.

  4. PZl1TOll2gUGKKvR
    PZl1TOll2gUGKKvR
    FfHlJfTjNuTf3l6r

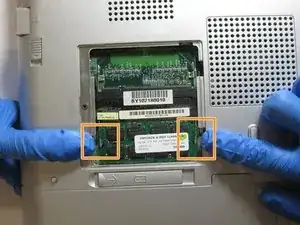

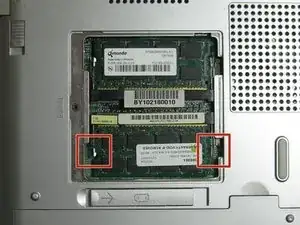

    • Locate the indicated tabs on the edges of the bottom RAM board.

    • Pull the tabs outward.

    • Remove the RAM board.

  5. iEDQ3Os6jhEHTVQw
    iEDQ3Os6jhEHTVQw
    dZEXWuVpean4Rb5k

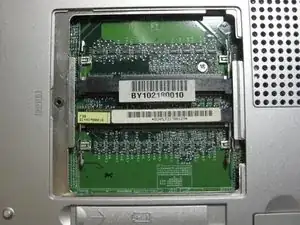

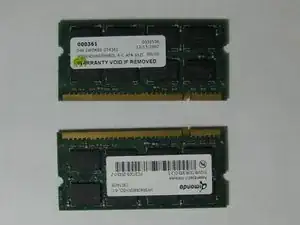

    • You have now successfully removed the RAM boards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
