Einleitung

  1. HkJNAbaChhT4lOyj
    • Turn the laptop over so the bottom of the device is facing upwards with the hinge facing away from you.

  2. MNfdUSKYILOHEVUA
    MNfdUSKYILOHEVUA
    5qK1sKIRxHKQaISA
    • Locate the switch on the top left of the laptop labeled with a padlock symbol.

    • Flip the switch in the direction of the unlocked padlock symbol.

  3. raqIRUJf6tS3FDaL
    • Locate the switch that releases the battery and slide it to the right.

  4. UEsoielQPV4G5NEc
    • While holding the release switch to the right, pull the battery away from you.

  5. VGlA3scGlWqNZyFZ

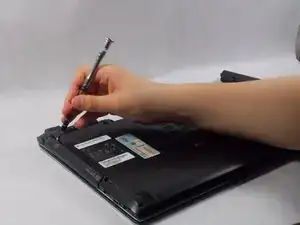

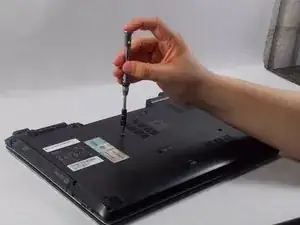

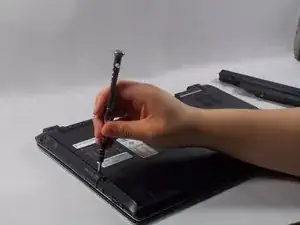

    • Locate screw towards the center of the device and unscrew it

  6. ruDdhV1GO6YZHY4E
    ruDdhV1GO6YZHY4E
    JYWmLCKHAnfuYKxy
    NT3GqpNLGdHLPuG5

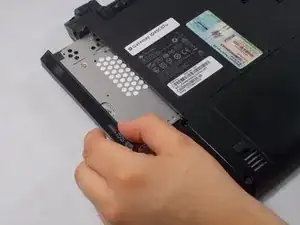

    • Use a metal spudger to pry off the DVD drive.

    • Once loosened, use your hand to pull the DVD drive out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
