Gateway KAV60 LT2016U RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

The RAM can be replaced if you have a Phillips #0 screwdriver.

  1. A3q2YPgfXhNZgVsq
    A3q2YPgfXhNZgVsq
    RUaQLjlSQUFRhKDC
    vBsVE4BbKvTrbJSE

    • Unlock the tab located in the top left corner of the netbook.

    • The red tab indicated that the battery has been properly unlocked.

    • Remove the battery.

    • When working with electronics, it is always wise to remove the power source before taking the device apart.

  2. b4lKOBPaZN1prSVG

    • The RAM is located under this cover.

  3. DQ1VNuZiDFsPML1U
    DQ1VNuZiDFsPML1U
    T1mbYm5PPELPTdfr
    Re2PmqOrLZ1RE3PD

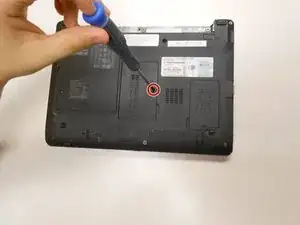

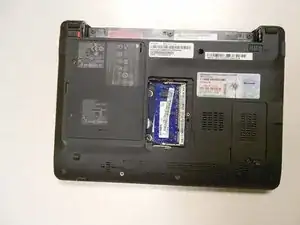

    • Using a Phillips #0 screwdriver, remove one (1) 5mm screw holding the cover in place.

    • Use a plastic opening tool to remove the cover.

  4. 1lLZY1NERqqQlFDW
    1lLZY1NERqqQlFDW
    FOjqnAqaGsBQQVXQ

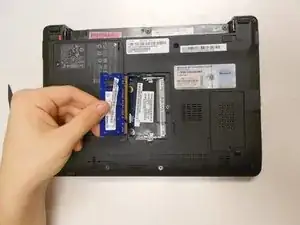

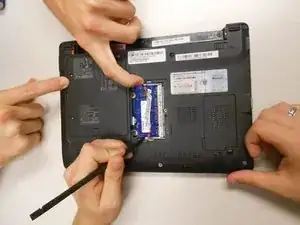

    • Unlock the RAM by pinching the metal clamps that keep the RAM in place.

    • Remove the RAM while the metal clamps are disengaged.

Abschluss

To reassemble your device, follow these instructions in reverse order.
