Gateway LT2104u RAM Replacement Guide

Geschrieben von: Chris Sullivan
  • Kommentare: 0
Gateway LT2104u RAM Replacement Guide

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide demonstrates how to safely remove and replace the RAM stick of a Gateway LT2104u.

  1. LScUiAHTdjOiYFLO

    • Locate the the "L" shaped cover on the back, lower right hand side the device. Using a Philips screwdriver, remove the screw holding it in.

  2. WIBeKJDiveC4bKPL
    WIBeKJDiveC4bKPL
    dgFyMSFbolJJD5KK

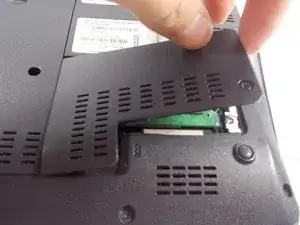

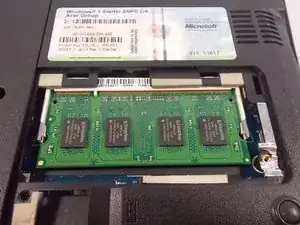

    • Gently lift the cover until it detaches from the device.

  3. mhWjGgypiVIeFyQy
    mhWjGgypiVIeFyQy
    GFcNKFkmpXutNINh

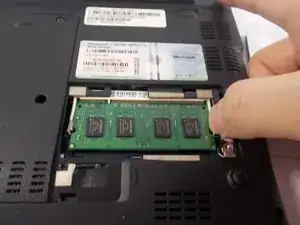

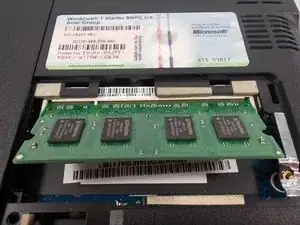

    • Gently push the levers on each side of the stick of RAM away from each other until the RAM springs into a 45° angle.

  4. tZNWYDKvZGLQOoaI

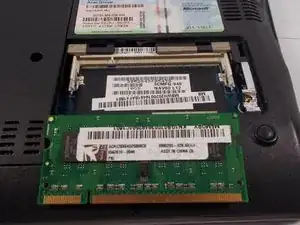

    • Carefully remove the stick of RAM by pulling at the same 45° angle the RAM is currently at until it detaches from the device.

  5. phrFUJCstaYG4Rlt

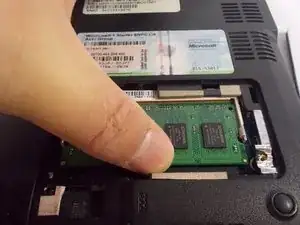

    • When inserting the new stick of ram, be sure to insert it at the same 45° angle that the old stick of ram was taken out at. Press the stick of RAM down until it clicks into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
