Gateway Lt4004u Wireless Card Replacement

Geschrieben von: Carlisle Hiott
  • Kommentare: 2
Gateway Lt4004u Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

In this guide, you will learn how to find the wireless card within the Gateway LT4004u laptop and remove it. Once the back panel has been separated, the wireless card can immediately be seen.

  1. hGkpMShdHMDpDuD2
    hGkpMShdHMDpDuD2
    32CvllZMTg2YuMtZ
    ABkoPpMFjQN1sgan

    • Place the laptop face down in front of you.

    • Locate the battery lock switches on the left and right top corners of the bottom of the device indicated by the red circles.

    • Pinch the switches and slide toward the edges of the computer to unlock.

  2. 2tMPBsAmaUrMwaL1
    2tMPBsAmaUrMwaL1
    5F2gWJfotKLUXOsY

    • Once the switches have both been unlocked, push the battery upwards away from the rest of the laptop.

    • Remove the battery from the laptop.

  3. AbFrpUccb1isD2bZ
    AbFrpUccb1isD2bZ
    D3XmlGAsUxYJqhyO
    JZATiIRYnAbnbCTM

    • Open the laptop so that the screen and keyboard are facing you.

    • Identify the 5 tabs above the function keys in the crevice that attaches the keyboard to the main frame.

  4. KTxnNgfTsuCbELLR
    KTxnNgfTsuCbELLR
    eVyCQpWBSCrA4sR4
    Y2eQGIXRoMa1UoAj

    • Use an opening pick to push each tab away from you.

    • Use an opening tool to push the middle tab until you hear a click. Begin to push the tool downward into the computer and slide the card along the length of the keyboard, as you overcome the five tabs.

    • A clicking sound is normal and no cause for alarm.

  5. Lrp1BPTfFahbyCDJ
    Lrp1BPTfFahbyCDJ
    W2SEELPp5snFW6Cx
    cLj1mQKaW1Yh2O2t

    • Begin to slide the plastic card under the top edge of the keyboard. You will hear popping sounds and the keyboard will eventually be released.

    • Carefully pry the keyboard from the main frame, starting at the top section.

    • Look at the intel sticker in this step and the next to orient your computer with the pictures.

    I cannot get this keyboard out! What’s the trick?

    Seth Lavinder -

    Using a credit card in one of the notches worked for me. With the tab pushed back far enough, there is enough of a gap where you can work the corner of the card in. It doesn’t go in much, but you should be able to slowly slide the card back and forth. As you do, you’ll start to hear the pops as mentioned in the guide. This was the hardest part of the process for me. If you’re still having problems, I’d suggest trying something slightly softer than whatever tool you are using. You want some flexibility that it can work itself into a small spot, but solid enough to slide through that small spot.

    Quentin Hill -

  6. 3kEE3PP5JOd5QkeG
    3kEE3PP5JOd5QkeG
    SxJPjMnu6OFFJyOx

    • Look at the intel sticker in this step and the previous step to orient your computer with the pictures.

    • Unplug the thin blue connection piece beneath the keyboard. It may pop off on its own while you are prying off the keyboard.

    • The popping noise will not hurt the computer.

    • Once the thin blue plastic has been detached, remove the keyboard from the rest of the laptop.

  7. Px3D3lGUOaMsKPWn
    Px3D3lGUOaMsKPWn
    vCUdW6RNkP6ZHQ44
    YQUTg1yfxLUoYsmp

    • Locate and unscrew the five screws indicated by the red circles in the picture using a Phillip's #0 screwdriver. All of the screws are 8.0 mm, excluding the top right screw which is shorter. It should be 5.0mm.

    • Each screw should have the word "DOOR" engraved beside or above it.

  8. kUIfNREcn2mN6BkI
    kUIfNREcn2mN6BkI
    PAoxrOMHowKbXSQk
    gIeSvwjquVnhqFcp

    • Hold the computer in your hands and use the tip of your screwdriver or a spudger to push through the bottom right hand hole left by the removed screw. This hole is shown in the picture within a red box.

    • The tip of the screwdriver will push against the bottom casing of the laptop and pop it away from the rest of the frame.

    • There will be a loud cracking noise as the bottom of the computer detaches. You are not breaking it!

  9. DYR2IyxyY1QpU4nh
    DYR2IyxyY1QpU4nh
    oTIBsHReNqQqtqWJ
    sTvRnDd6nDNQEKAn

    • Close the laptop and place it in front of you face-down with the hinge connecting the screen and keyboard away from you on the table. Pry the rest of the bottom casing away from the computer, exposing the inside.

    • Note that the laptop in this picture has both been placed upside down and rotated 180 degrees from the previous picture.

  10. IRcZPImZbXhXO5oK
    IRcZPImZbXhXO5oK
    spIQ4KyGPEY6Y6lb
    InEkaZRJcNWEiBVI

    • Locate the wireless card (indicated by the red square) and the two wires attached to it.

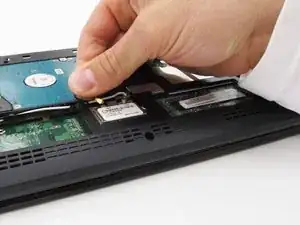

    • Use your fingers and slightly pull on the wires until they disconnect from the wireless card.

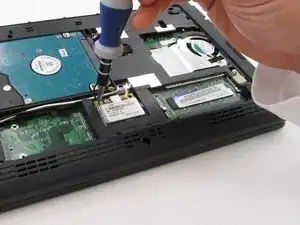

    • Locate the one silver screw on the wireless card and unscrew it using a Phillips #0 screwdriver. It is 3.0mm long.

  11. bNeyvfD2EgWRFx51
    bNeyvfD2EgWRFx51
    ggA6DvDLmYfekO5i

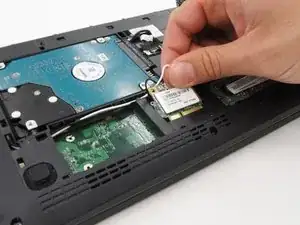

    • After the screw has been removed, you should be able to insert your fingernail or prying device under the bottom side of the wireless card.

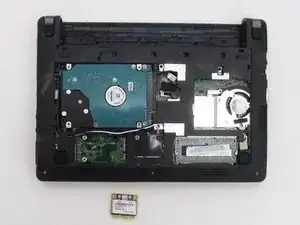

    • Pull upwards and remove the wireless card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
