Gateway M-2626u CPU Replacement

Geschrieben von: Armani Tayeh
  • Kommentare: 0
Gateway M-2626u CPU Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

If your computer is failing due to old age and you think you need a CPU replacement, follow this guide to help replace it.

  1. VZHtnkIHGHoBhgKg
    VZHtnkIHGHoBhgKg
    kHDt4DDPMrufYnNq

    • Using the Phillips #1 screwdriver, remove the four 6mm screws on the back of the laptop.

  2. eeoroR1cenRYAlDC
    eeoroR1cenRYAlDC
    vHsIJoHCdR3eTAhu

    • Insert the plastic prying tool and pry the back panel off starting at an edge and moving your way around it.

  3. uiRADjeOOnZlOlfM
    uiRADjeOOnZlOlfM
    SbLRofDuGGU1ctI3

    • Remove the header by pulling on it with two fingers.

  4. VqkvvbonwPF3WEMi

    • Remove the six 2.5mm screws using a Phillips #1 screwdriver.

  5. qPwXZnChoAV3gXHx

    • Remove the fan by moving it to the side and lifting it out of the computer.

  6. DSJE4ObEEHTWfoX5

    • Once the fan is removed, locate the CPU.

    • Rotate the plastic knob using a flat head screw driver as depicted in this image

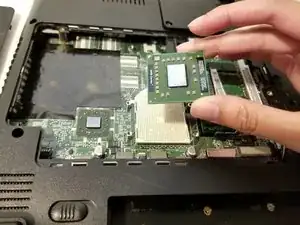

  7. gqmB6ueHjNYaWTvY

    • Lift and remove the CPU from the mother board socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
