Gateway MA6 Laptop RAM Replacement

Geschrieben von: Chris Naughton
  • Kommentare: 0
Gateway MA6 Laptop RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

The RAM in this laptop can be accessed easily with very little disassembly. There are two slots that both accept PC2-5300S RAM.

  1. 4KAgbG1QBTQVx6dY

    • To prevent injury, make sure the laptop is unplugged before removing the battery.

    • Make sure the switch in the upper right corner of the laptop is switched to the "unlock" position (toward the unlocked padlock icon).

  2. UZqXGT4FrOAZPPFo
    UZqXGT4FrOAZPPFo
    SAoBNi6LuRrUyKrK
    INaQqC1yKZiQLnoE

    • Pull the switch on the upper lefthand corner of the laptop towards the unlocked padlock icon.

    • Firmly pull the battery outwards and away from the laptop.

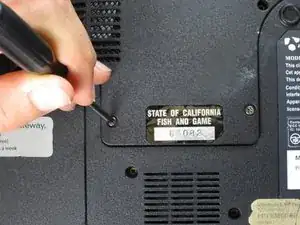

  3. DyMkcgsuWTLJadZd
    DyMkcgsuWTLJadZd
    fweeHHy2lG1ARAn6

    • Remove the seven 6 mm Phillips #0 screws from the back of the case.

    • Leave all the screws in the back plate and so you don't lose them.

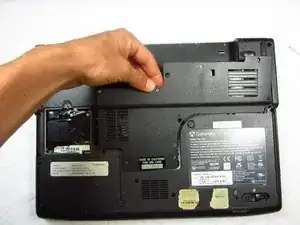

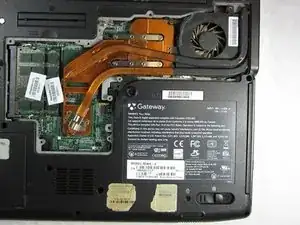

  4. MVcL2Z5AGnfZ5wvV
    MVcL2Z5AGnfZ5wvV
    NMhPeoiDfUGdKoSq

    • Pull upwards on the top of the back cover to remove it.

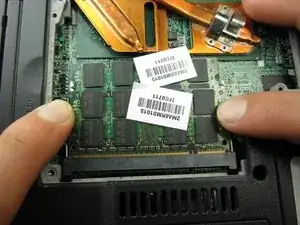

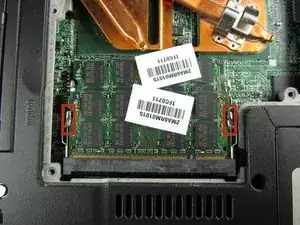

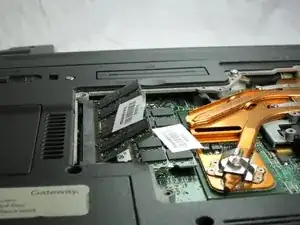

  5. X3tAqDETtWIy4Vn2
    X3tAqDETtWIy4Vn2
    rJIncaqAIPnEGDZ5
    RCSj2tkDM5fXWH2R

    • Pull outwards on the silver metal pins to release the upper RAM module.

    • The module will automatically lift up 30° after it has been released.

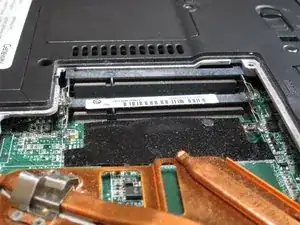

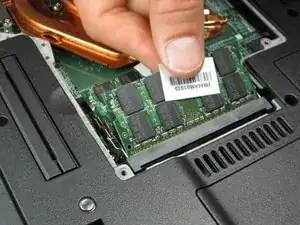

  6. ZgKg1HQZpDW5ppev
    ZgKg1HQZpDW5ppev
    dKgI6kj3snAVR4yO

    • Firmly grasp the outer portion of the RAM module, and pull it outward to remove it from the port.

    • Repeat the same process for the lower RAM module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
