Removal of the CD/DVD drive. Use this guide to replace a defective CD/DVD drive, in the case that your disk drive is not working. If it's a problem with the drive itself, you will need a new one, otherwise there may be an issue with the device itself.
Werkzeuge
-
-

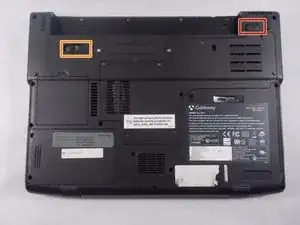

Push the locking tab over to the right away from the battery to unlock it from the laptop.
-
Hold the additional locking tab to the left while puling out the battery.
-
-
-

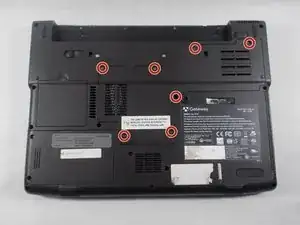

Remove the following screws securing the plastic panel from the bottom of the laptop:
-

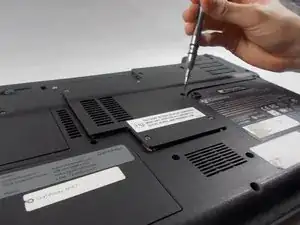

Remove the seven 6 mm screws with a Phillips #0 screwdriver
-
-
-

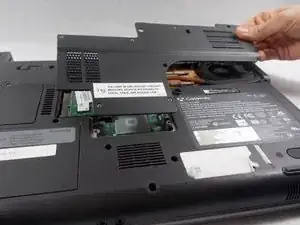

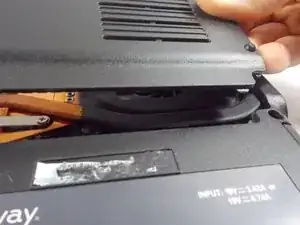

Pull upwards on the top of the plastic panel to remove it.
-

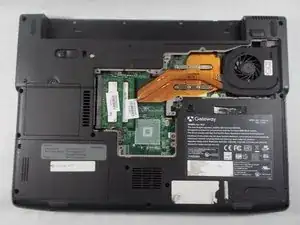

With the exception of the screw marked "K", all of the screws will remain connected to the plastic piece.
-
-
-

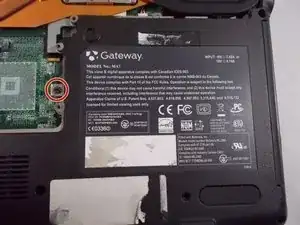

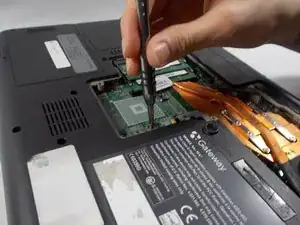

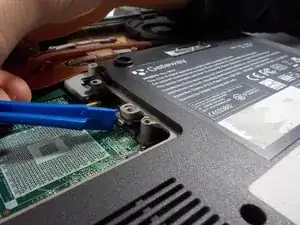

Use the edge of a plastic opening tool to push down on the metal latch preventing the drive from being pushed out.
-

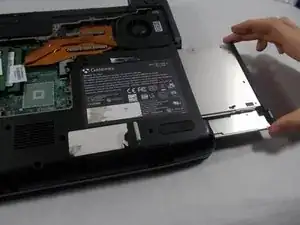

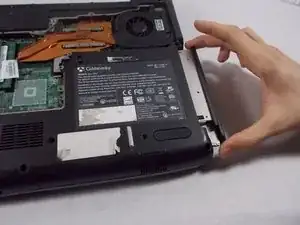

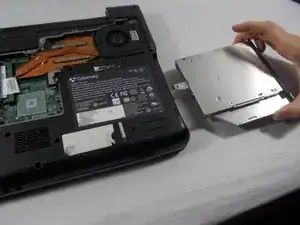

While pressing down, push the metal latch out away from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
